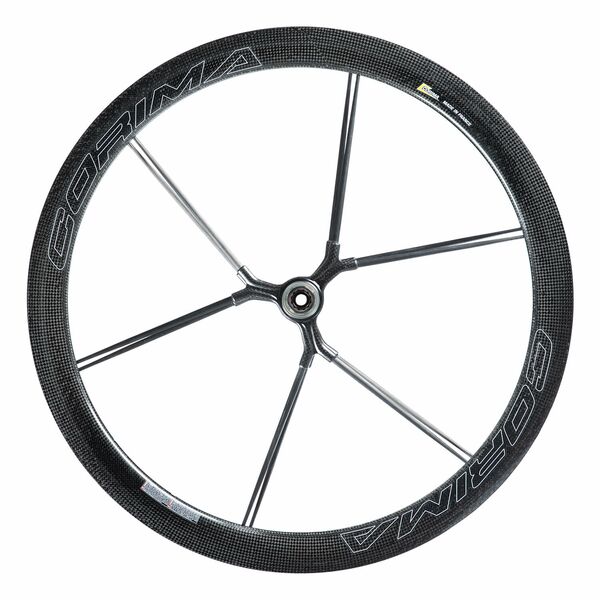

CORIMA WHEEL MCC DX RR 47MM 3K CERAMIC
CORIMA WHEEL MCC DX RR 47MM 3K CERAMIC
Velo Studio
#720, 9th cross, 10th A Main Road, 2nd Stage Indiranagar
560038 Bangalore KA
India
Description
The MCC DX answers our desire to develop the disc wheel set able to cover all aspects of very high performance. Lightweight for fast climbing, optimal stiffness for improved performance, an unprecedented level of responsiveness for fast acceleration and optimized aerodynamics.
At 47mm, the MCC DX pushes the limits of performance on hilly courses. In addition to its iconic appearance, the MCC DX is also the most innovative and highest performing product on the market.
Data
- 28" clincher rear
- Shimano / HG
- Profile : 47MM
- Rim width : 26mm
- Axle : Thru axle Ø12 x 142mm
- Weight : 890 g
- Carbon weave : 3K
- Carbon Spokes : 12
Shipped with
- Rim tape
- Protection wheelbag
- Valve extender
Tire air pressure
Refer to the table below for the tire pressures in relation to the section marked on the tyre.
| Tire section mm |
max. pressure (bar) |
max. pressure (psi) |
|---|---|---|
| 23 | 7,8 | 113 |
| 24 | 7,5 | 109 |
| 25 | 7,3 | 106 |
| 26 | 7,0 | 102 |
| 27 | 6,8 | 99 |
| 28 | 6,6 | 95 |
| 29 | 6,3 | 92 |
| 31 | 6,1 | 88 |
| 31 | 5,8 | 85 |
| 32 | 5,6 | 81 |
Do not remove the tire with any metal tool.
The minimum tire section is 23 mm and the maximum 32 mm.
For comfort and performance we recommend fitting 23 mm section tires on our 22.6 mm wide rims and 25 mm section tires on our 26 mm wide rims.
The original CORIMA braided rim tape is mandatory. If it is damaged it must be the replaced.
CORIMA clincher wheels are not compatible with tubeless conversion kits.
Only tires with inner tubes are acceptable (except latex inner tubes).
Co2 cartridge inflation systems are only allowed if their flow rate is adjustable. Instant inflation cartridges are prohibited with CORIMA wheels.
If the tire manufacturer indicates a pressure lower than that in the table, use this lower value.
