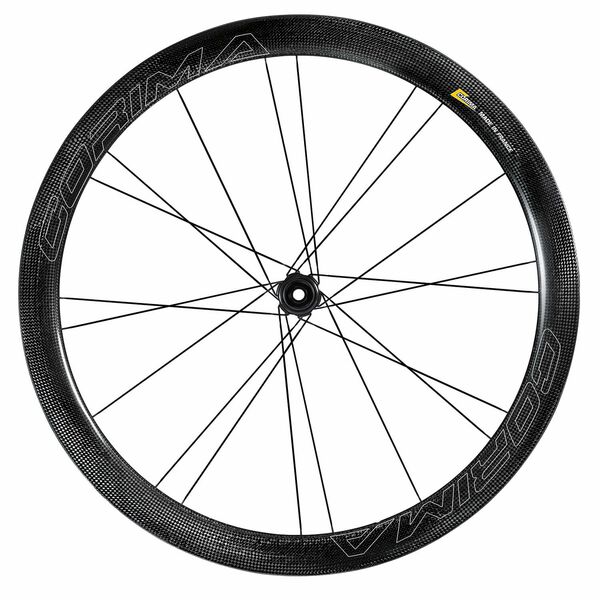

CORIMA WHEEL WS BLACK DX FR 47MM
CORIMA WHEEL WS BLACK DX FR 47MM
Velo Studio
#720, 9th cross, 10th A Main Road, 2nd Stage Indiranagar
560038 Bangalore KA
India
Description
The WS Black illustrates so well CORIMA's mastery and experience in carbon wheel design. It is the perfect balance between performance and comfort.
In 47mm, the WS Black will appeal to cyclists looking for performance on hilly courses. This WS Black has all the qualities required to meet the expectations of both demanding competitors and cyclists who want to have fun while riding.
Data
- 622x16c clincher front
- Profile : 47MM
- Rim width : 26mm
- Axle : Thru axle Ø12 x 100mm
- Weight : 795 g
- Carbon weave : 3K
- Black Spokes : 20
Tire air pressure
Refer to the table below for the tire pressures in relation to the section marked on the tyre.
| Tire section mm |
max. pressure (bar) |
max. pressure (psi) |
|---|---|---|
| 23 | 7,8 | 113 |
| 24 | 7,5 | 109 |
| 25 | 7,3 | 106 |
| 26 | 7,0 | 102 |
| 27 | 6,8 | 99 |
| 28 | 6,6 | 95 |
| 29 | 6,3 | 92 |
| 31 | 6,1 | 88 |
| 31 | 5,8 | 85 |
| 32 | 5,6 | 81 |
Do not remove the tire with any metal tool.
The minimum tire section is 23 mm and the maximum 32 mm.
For comfort and performance we recommend fitting 23 mm section tires on our 22.6 mm wide rims and 25 mm section tires on our 26 mm wide rims.
The original CORIMA braided rim tape is mandatory. If it is damaged it must be the replaced.
CORIMA clincher wheels are not compatible with tubeless conversion kits.
Only tires with inner tubes are acceptable (except latex inner tubes).
Co2 cartridge inflation systems are only allowed if their flow rate is adjustable. Instant inflation cartridges are prohibited with CORIMA wheels.
If the tire manufacturer indicates a pressure lower than that in the table, use this lower value.
