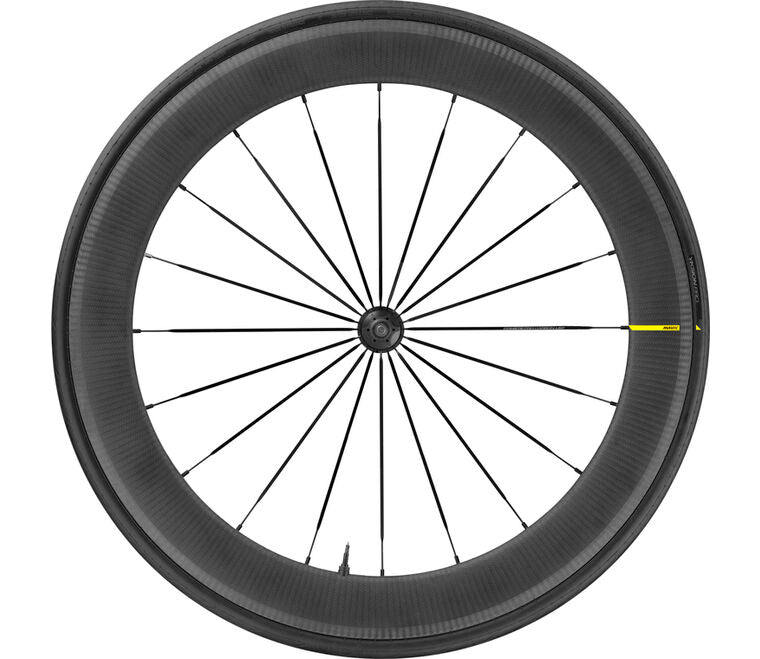

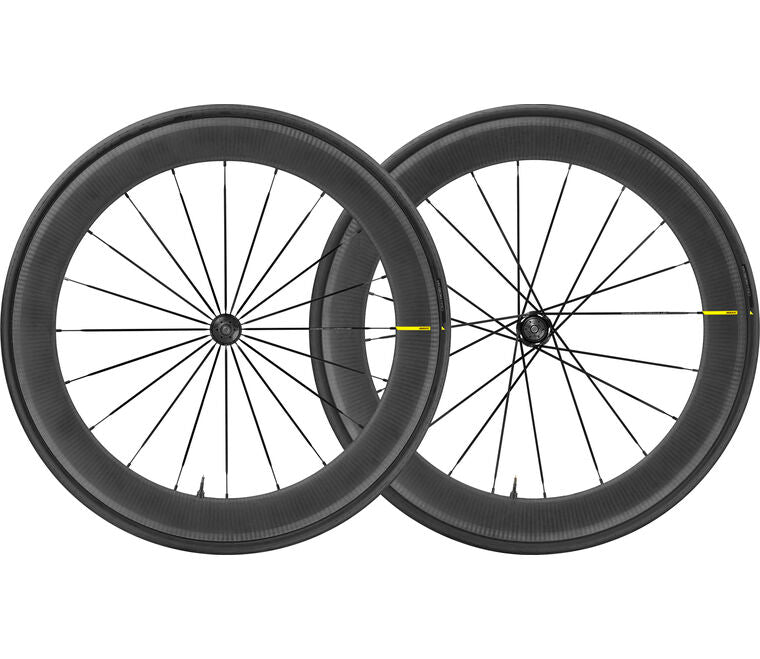

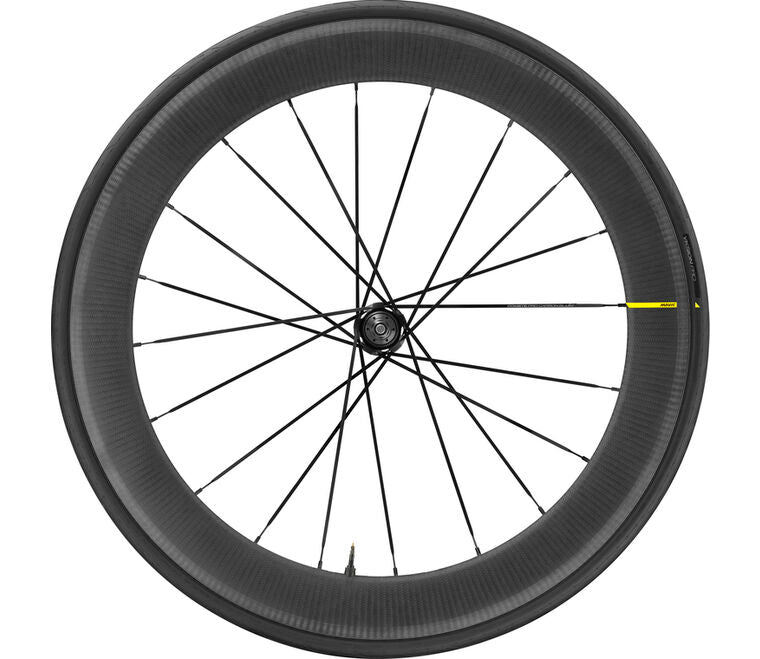

MAVIC WHEELSET ELLIPSE PRO 65 UST CARBON TRACK
MAVIC WHEELSET ELLIPSE PRO 65 UST CARBON TRACK
Velo Studio
#720, 9th cross, 10th A Main Road, 2nd Stage Indiranagar
560038 Bangalore KA
India
This is the secret weapon for fixed gear racers. Anyone committed to racing ultra-fast and highly technical street criteriums such as the famous Red Hook series demand wheels that deliver speed, reliability, and even more speed.
These wheels were developed with racers who initially rode our proven Ellipse training wheels, a standard for velodrome and fixed gear winter training. In an effort to elevate those racers’ performance possibilities, we tested various rim depths, spokes and lacing styles in tubular, clincher, and then UST Tubeless. That process led to the Ellipse Pro Carbon UST.
The 64mm deep Comete Pro Carbon UST rims are laced up with 20 patented steel aero spokes on our sturdy Ellipse hub. The rear hub is flip-flop style, so you can mount one cog on each side and make quick gear ratio swaps according to the racecourse or terrain.
SPECIFICATIONS
Rims
- Material: 3K carbon fibers
- Height: 64mm
- Drilling: traditional
- Valve hole diameter: 65 mm
- Tire: UST Tubeless and tubetype
- Internal width: 19 mm
- ETRTO size: 622x19TC
- Use with Mavic Tubeless Tape
- UST tubeless technology
- iTgMAX carbon clincher technology for rim brake
Spokes
- Material: steel
- Shape: straight pull, elliptical aero, double butted (patented)
- Nipples: steel, ABS
- Count: 20 front and rear
- Lacing: front radial, rear crossed 2
Hubs
- Front and rear bodies: aluminum
- Axle material: steel
- Fixed cog
- QRM+ bearing preload technology
Versions
- Color: Black only
Compatibility
- Freewheel: fixed cog only, flip-flop hub (one cog possible on each hub side) Cog thread: 1,37x24TPI Lock ring thread: left thread M33x1
- Front axle: for fixing nuts only (included), M9x1 thread
- Rear axle: for fixing nuts only (included), M9x1 thread
Delivered with
- Mavic tire sealant (rear wheel)
- Tire sealant syringe
- UST valve and accessories
- Pre-installed tubeless rim tape
- Multifunction adjustment wrench (delivered with rear wheel)
- User guide
Intended use
- ASTM CATEGORY 1 : road only
- For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 120kg, bike included
- Maximum tire pressure: 675bar/97PSI with a 23mm tire - 38bar/55PSI with a 62mm tire
- Recommended tire sizes: 25 to 32 mm
- Max Pressure: see indication on wheel and tire If they differ, use the lowest of the 2
Information on specified weight
- The weight of the wheels is announced at +/-5%, without lock-nut, nor rim tape (for the clincher wheels)
