SHIMANO ADAPTER SM-RTAD05 CENTER TO 6 BOLT ESMRTAD05

SHIMANO DEORE - Disc brake rotor adapter - 6-bolt rotor to CENTER LOCK hub

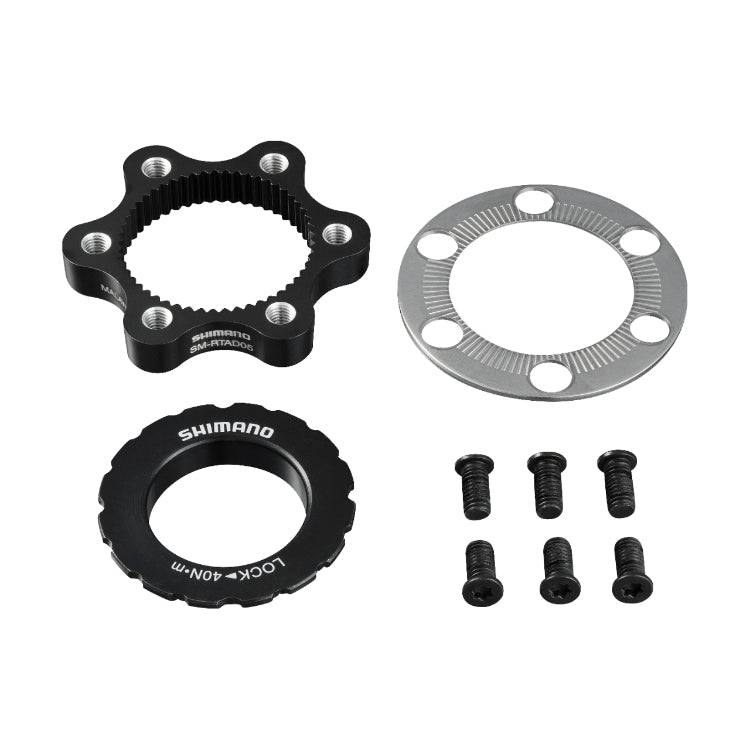

SHIMANO's SM-RTAD05 disc brake rotor adaptor is used for installing a 6-bolt disc brake rotor to the CENTER LOCK hub. The adapter features a reliable anti-loosen plate for secure braking in all riding conditions.

• Lightweight and sleek design
• Mud shedding design
• New tightening plate
• Reliable and easy anti-loosen plate
• Compatible with metal pad
• To be used for installing a 6-bolt type disc brake rotor to CENTER LOCK system hub/wheel (SM-RTAD05)
• 160 mm, 180 mm, 203 mm

Product Specifications

• MODEL NO: SM-RTAD05
• SERIES: DEORE M610 Series
• Color: Black
• Remarks Use this disc brake rotor adapter to attach the 6-bolt mount type disc brake rotor to the CENTER LOCK mount type hub. Cannot be used with the 6-bolt disc brake rotor that is installed with an aluminum adapter (SM-RT86/RT76).
• Lock ring_Type: External serration
• Disc brake rotor mount method: Hexalobular bolts
• Compatibility (Disc brake rotor)_SM-RT66: ✔
• Compatibility (Disc brake rotor)_SM-RT56: ✔
• Compatibility (Axle)_Front 20 mm Thru: ✔
• Compatibility (Axle)_Front 15 mm E-THRU: ✔
• Compatibility (Axle)_Front 9 mm Quick release: ✔
• Compatibility (Axle)_Rear 12 mm E-THRU: ✔
• Compatibility (Axle)_Rear 12 mm Thru: ✔
• Compatibility (Axle)_Rear 10 mm Thru: ✔
• Compatibility (Axle)_Rear 10 mm Quick release: ✔

*Note: Images are for representational purposes only. Actual size / packaging varies with product type/size
