SHIMANO CRANK ULTEGRA 12 SPEED 170MM 52-36T IFCR8100CX26

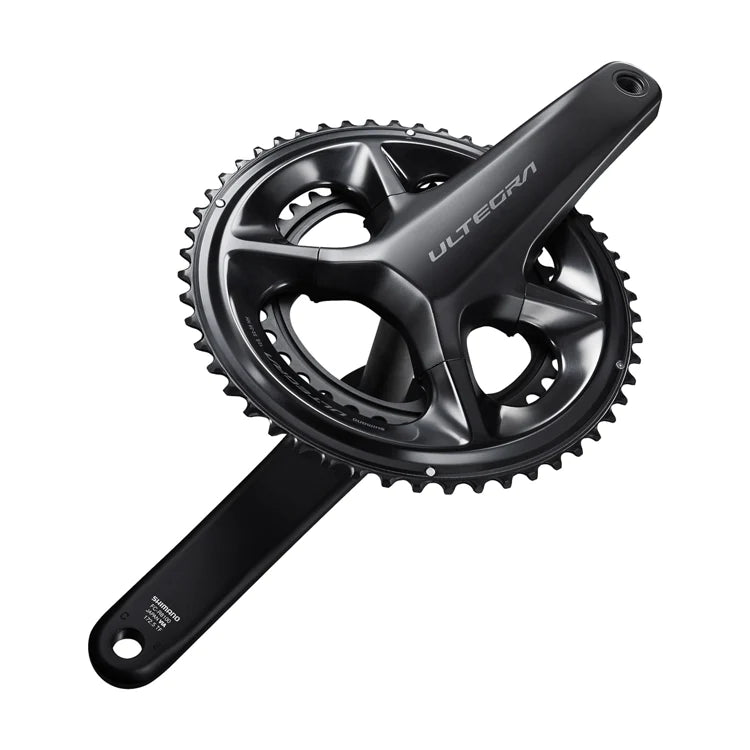

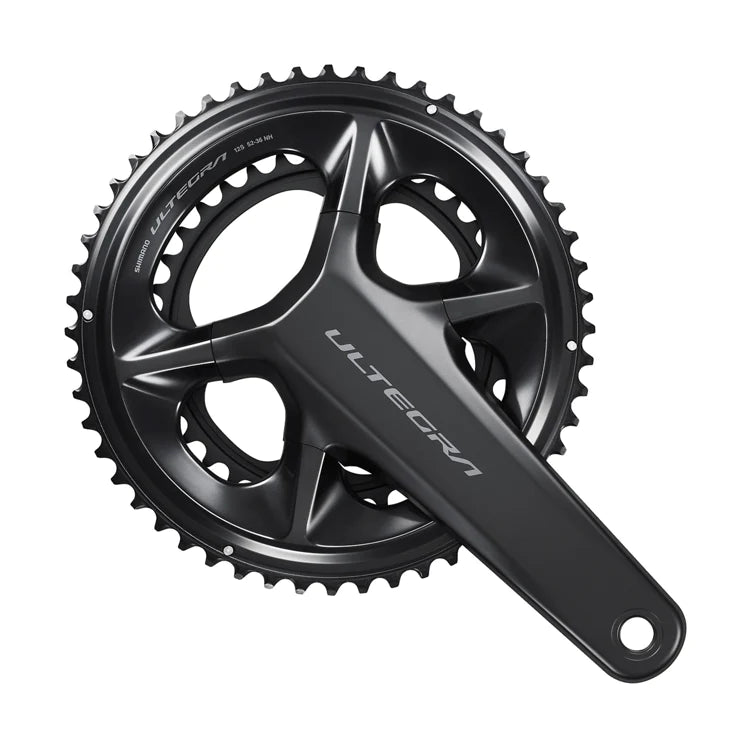

Shimano Ultegra Hollowtech II Crankset 2x12-speed FC-R8100
ULTEGRA's new FC-R8100 crank maintains the same quick, precise front shifting and efficient power transfer that Shimano riders have grown accustomed to, but with even more crank arm length options. Spanning 160 to 175 mm in length, ULTEGRA cranks now cater to smaller riders, triathletes, and cyclists curious about shorter crank arms.
An integral part of Shimano's new 12-speed road lineup, the FC-R8100 crank builds upon Shimano's legendary front shifting and transmission efficiency. With new refinements for seamless 12-speed shifting, the ULTEGRA crank is now offered in lengths from 160 to 175 mm, bringing performance and improved fit for smaller riders, triathletes, and riders with specific biomechanical requirements.

Features

• Optimal balance of stiffness, strength, weight, and rotational performance
• HOLLOWGLIDE structure cuts weight yet maintains strength for better power transfer and quicker, more precise front shifting
• 52-36 chainring option 170crank arm lengths.

Technologies

Hollowtech II
Providing the best balance of stiffness, strength, weight, and rotating performance
The concept of HOLLOWTECH II technology is focused on producing a superior crankset that will maximize a rider’s power transfer. The rigidity of the crankset ensures pedaling efficiency while its weight, a key element of the crankset, you want light, aids in cycling longer distances over which the rider needs to pedal more. Naturally, SHIMANO strove for the optimum balance between the conflicting needs of stiffness while producing a lightweight crank. HOLLOWTECH technology is an ultra-lightweight hollow crankarm created by SHIMANO with the company’s own proprietary forging technology that also maintains rigidity. The addition of HOLLOWTECH II technology integrates the bottom bracket axle with the right crankarm for more stiffness and weight savings to achieve a high-dimensional balance. Its outboard bottom bracket bearing system provides better weight distribution and more pedaling stability, allowing for more efficient power transfer.
The HOLLOWTECH II crankset has been developed by pursuing the optimum balance of stiffness & rotating performance in a lightweight and beautiful crankset design.
High Precision Sealing
Moreover, the HOLLOWTECH II crankset has high-precision sealing in the bearing area to increase durability maintaining excellent rotating performance for long periods.

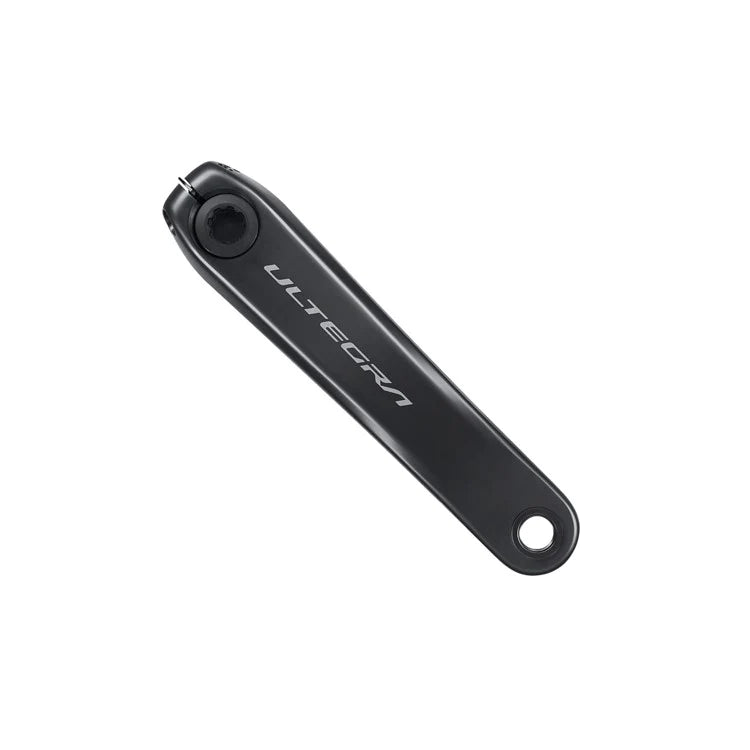

Hollowtech Crank Arm

• A lightweight crankset not only reduces the bike’s weight but decreases rotating mass to aid in acceleration.
• The challenge is to reduce the weight of the crank without reducing its strength and rigidity.
• SHIMANO’s advanced forging technology has solved the problem through the HOLLOWTECH crank.
• Just like high-quality frame tubing, a hollow crank arm can provide amazing strength and rigidity at a very lightweight.

Hollowglide

• Hollow technology on the outer chainring
• High rigidity hollow structure cuts down on weight yet maintains strength. Better power transfer and quicker and more precise front shifting

Specifications

• Model No: FC-R8100
• Series: ULTEGRA R8100 Series
• Color: Series color
• Average weight:711 (52-36T)
• Threaded bottom bracket shell width (mm)_70: ✔
• Chainring combination: 52-36T
• Compatible bottom bracket type_Outboard: ✔
• Crank fixing screw included: ✔
• Crank arm length (mm)_170: ✔

• Spider/Gear arms: 4

• HOLLOWGLIDE: ✔
• HOLLOWTECH II: ✔
• HOLLOWTECH crank arm: ✔
• Optional chain guard_Without chain/bash guard: ✔
• Recommended bottom bracket_Press-fit: SM-BB72-41B
• Recommended bottom bracket_Threaded (normal): SM-BBR60
• Threaded bottom bracket shell width (mm)_68: ✔
• Q-factor (mm): 148
• Chain line (mm): 44.5
• Compatible chain: HG 12-speed
• P.C.D. (mm): 110
• Rear speeds: 12.
