Lightweight design

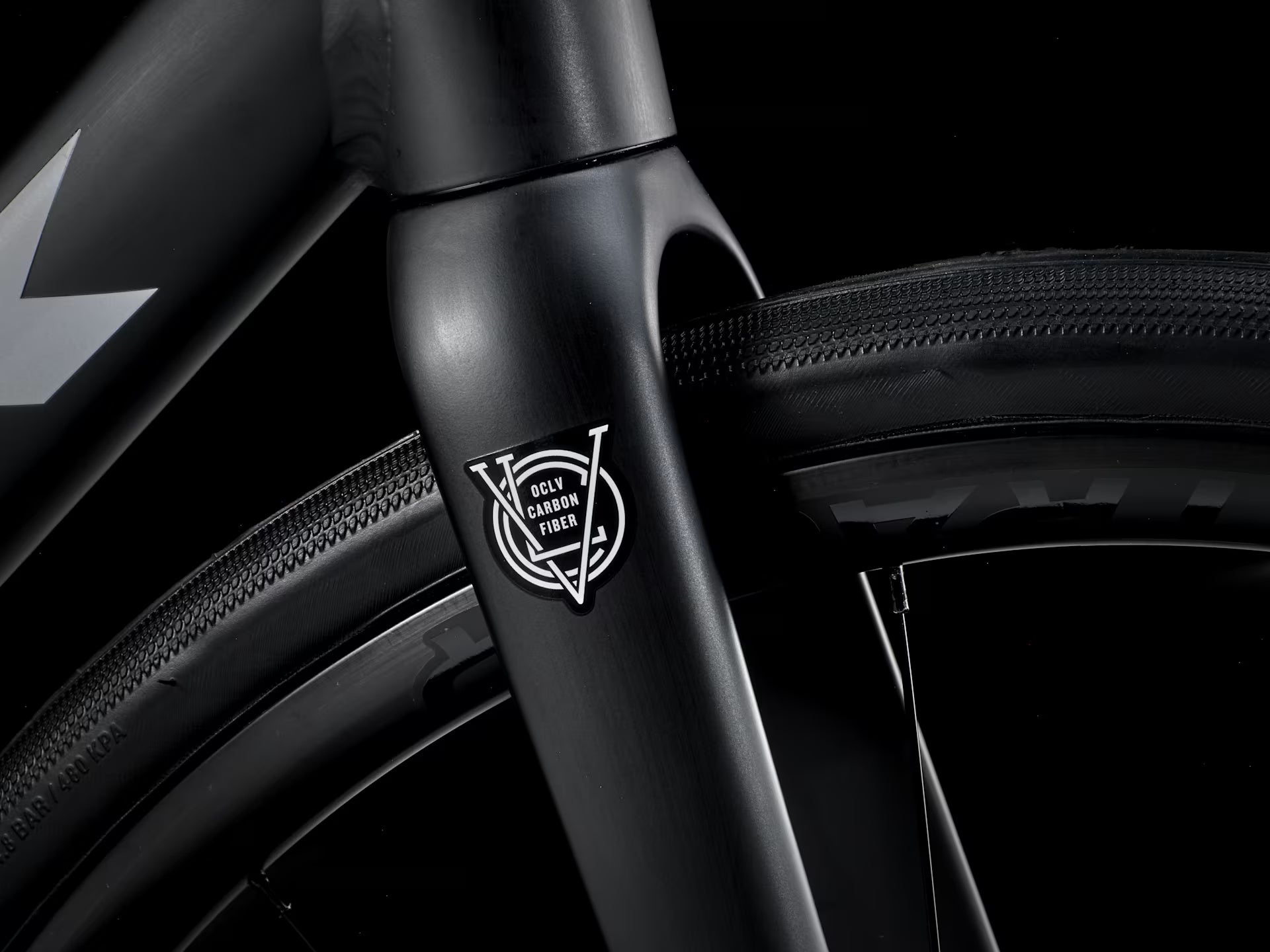

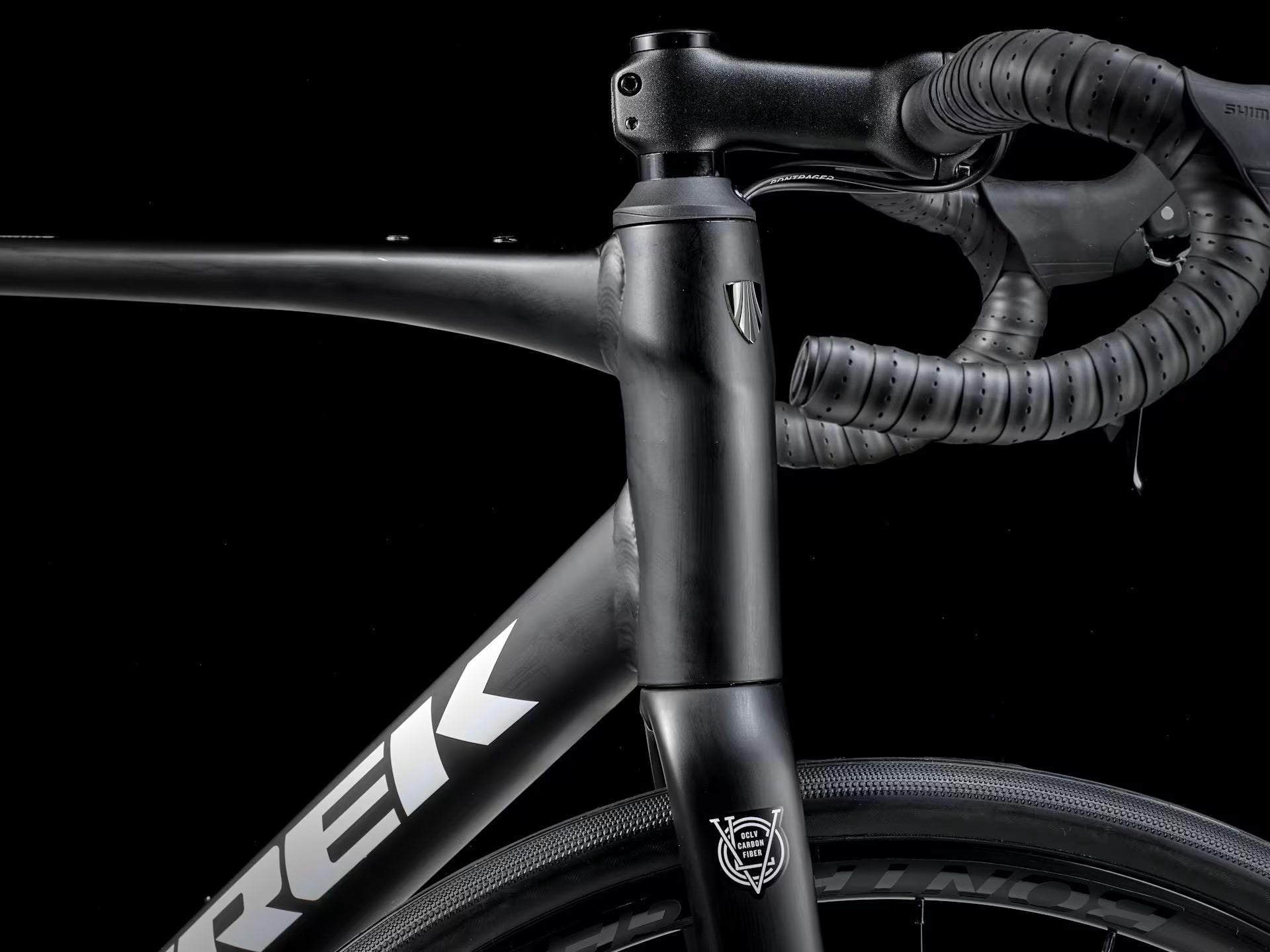

A new full carbon fork and updated frame design helps shave around half a pound from the previous generation Domane AL Disc.
Trek

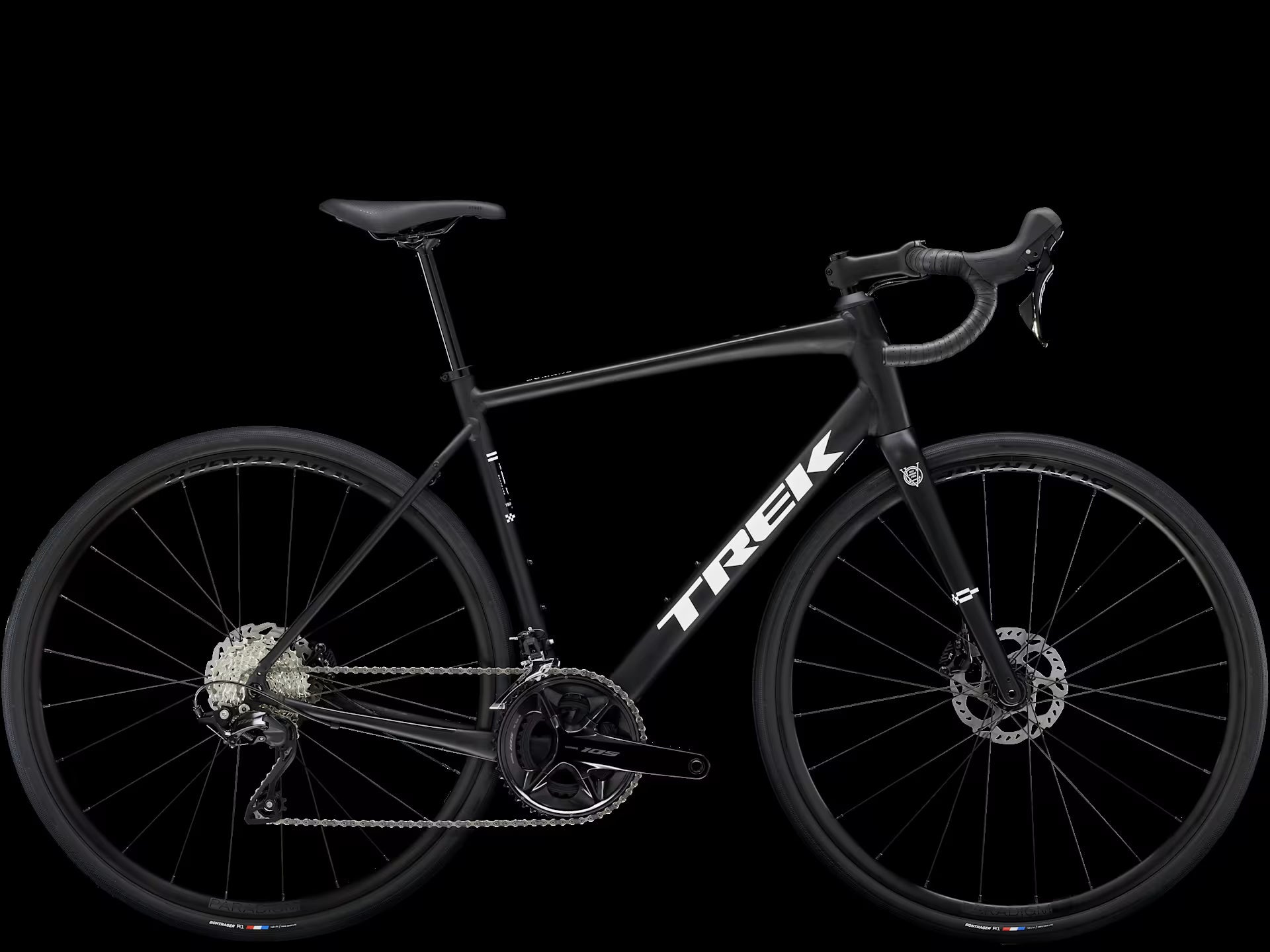

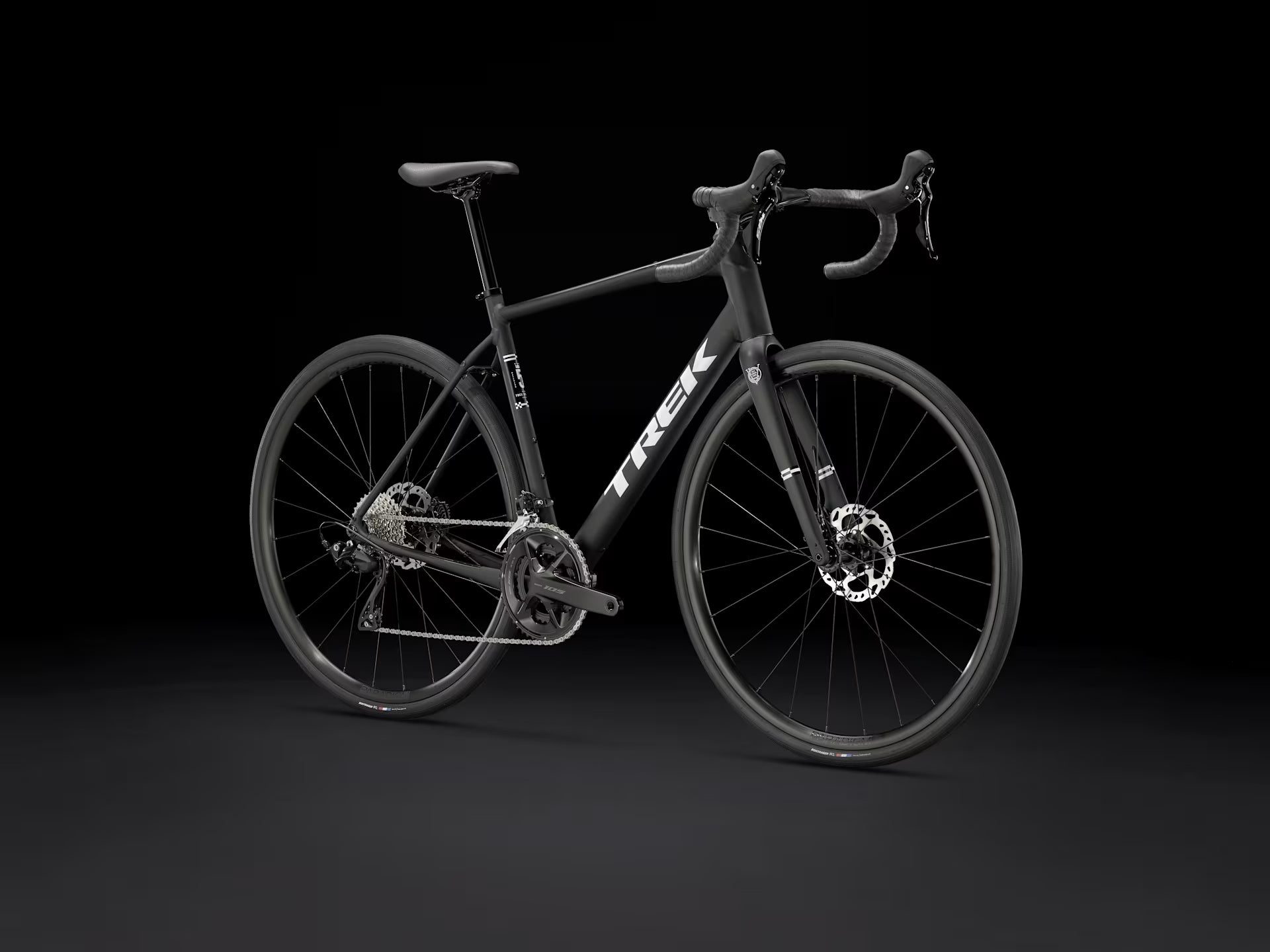

TREK Domane AL 5 Gen 4 (Matte Trek Black)
Size:52
Quantity:
To purchase this, please get in touch through one of the following methods
The Domane AL 5 is a speedy and versatile road bike that's a perfect starting point for anyone looking to get into road riding. With an Alpha Aluminium frame, clearance for larger tyres, a 12-speed Shimano 105 drivetrain, top tube mounts and an all-day road comfort geometry – the Domane AL 5 is perfect for casual pedalling, group rides, fast commutes and even venturing beyond tarmac roads to most gravel roads.
Features
Right for any road

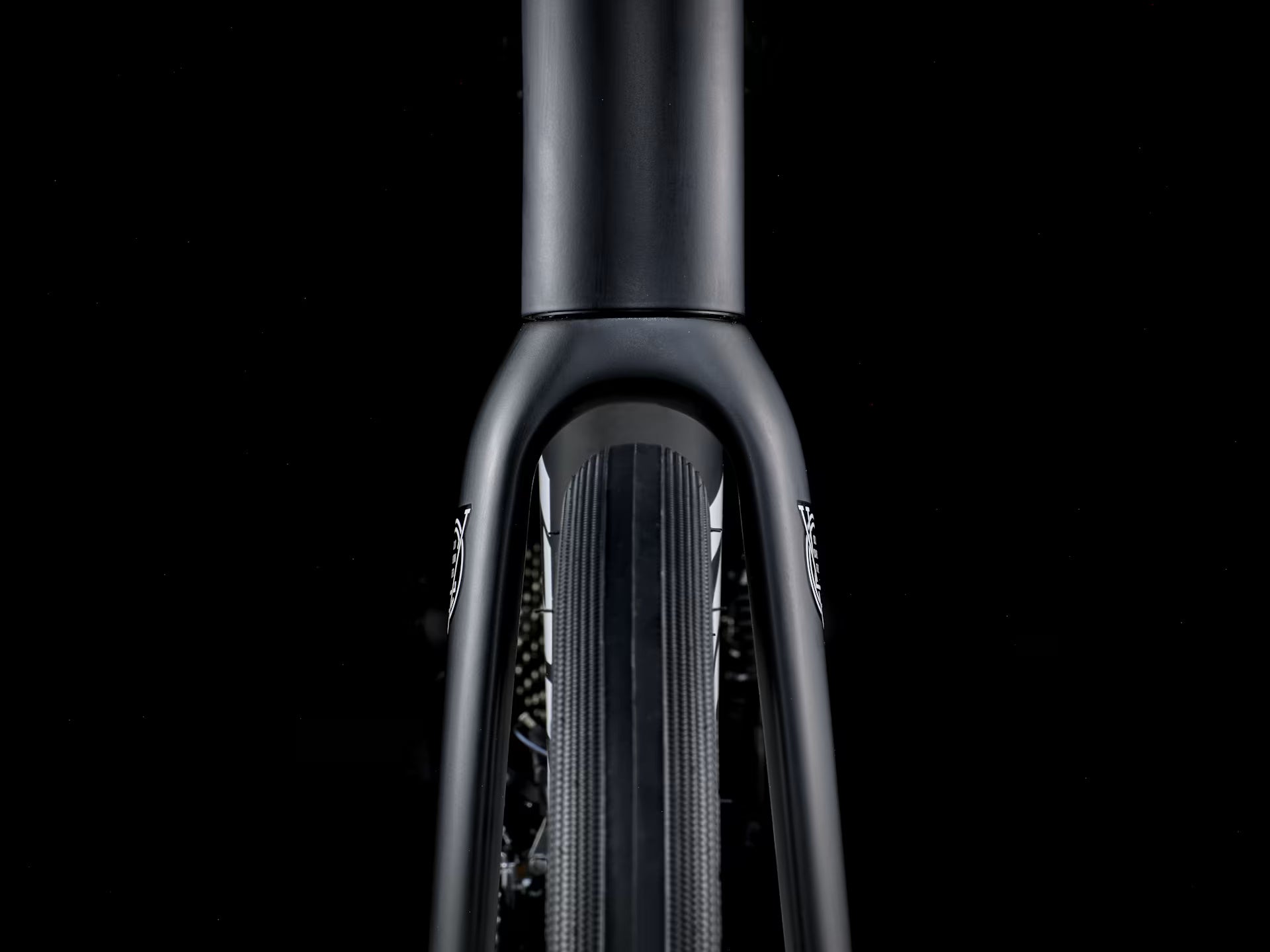

Room for bigger tyres let you ride everything from smooth tarmac to most gravel roads in comfort.
Long-haul comfort
A more upright road riding position keeps you comfortable, confident and efficient during long days in the saddle.
Pack it up, pack it in

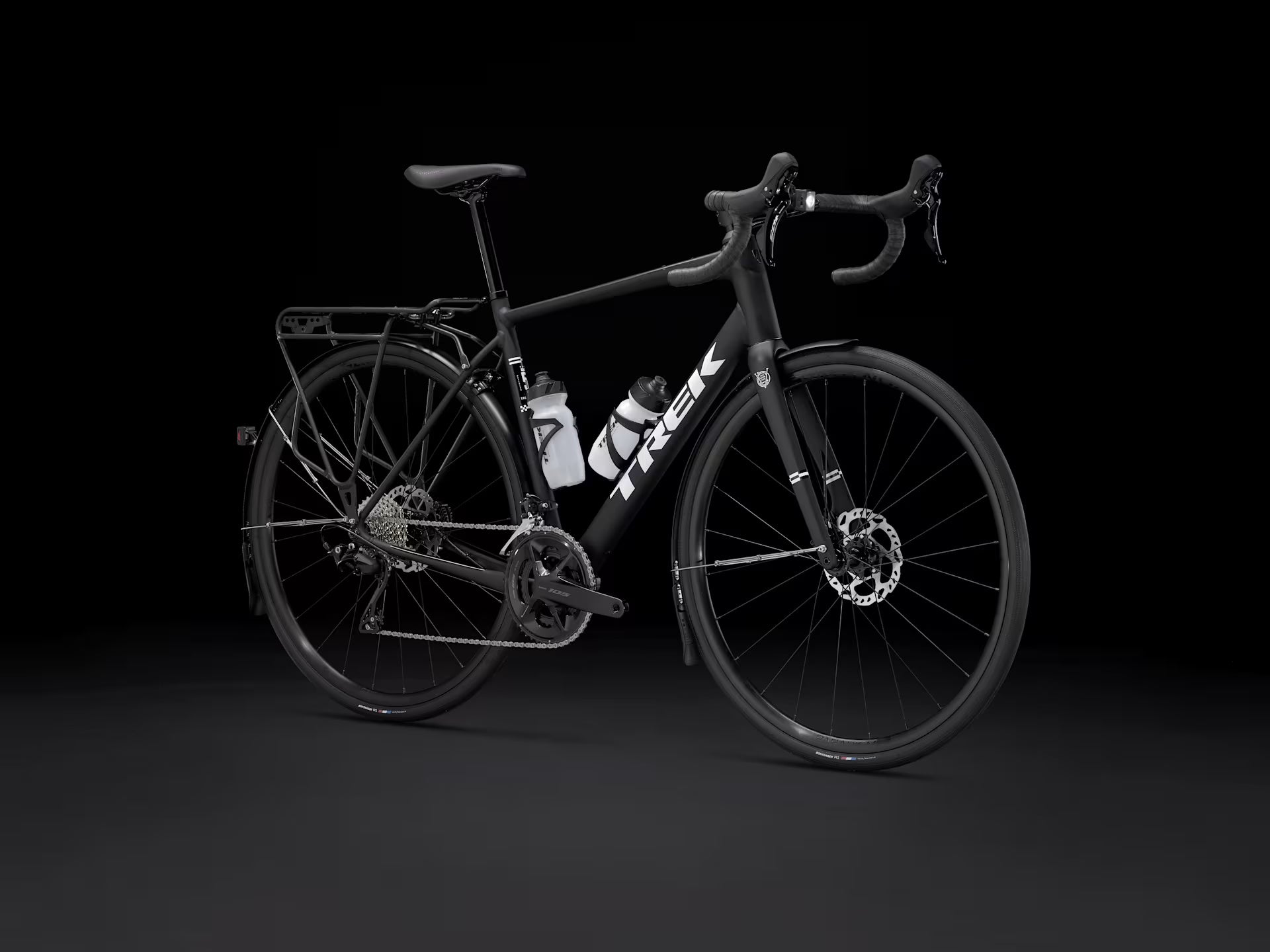

Mounts for a top tube bag, rack, mudguards and water bottles let you carry everything you need for day-long adventures, fast commutes and anything in between.
Modern ergonomics, premium integration

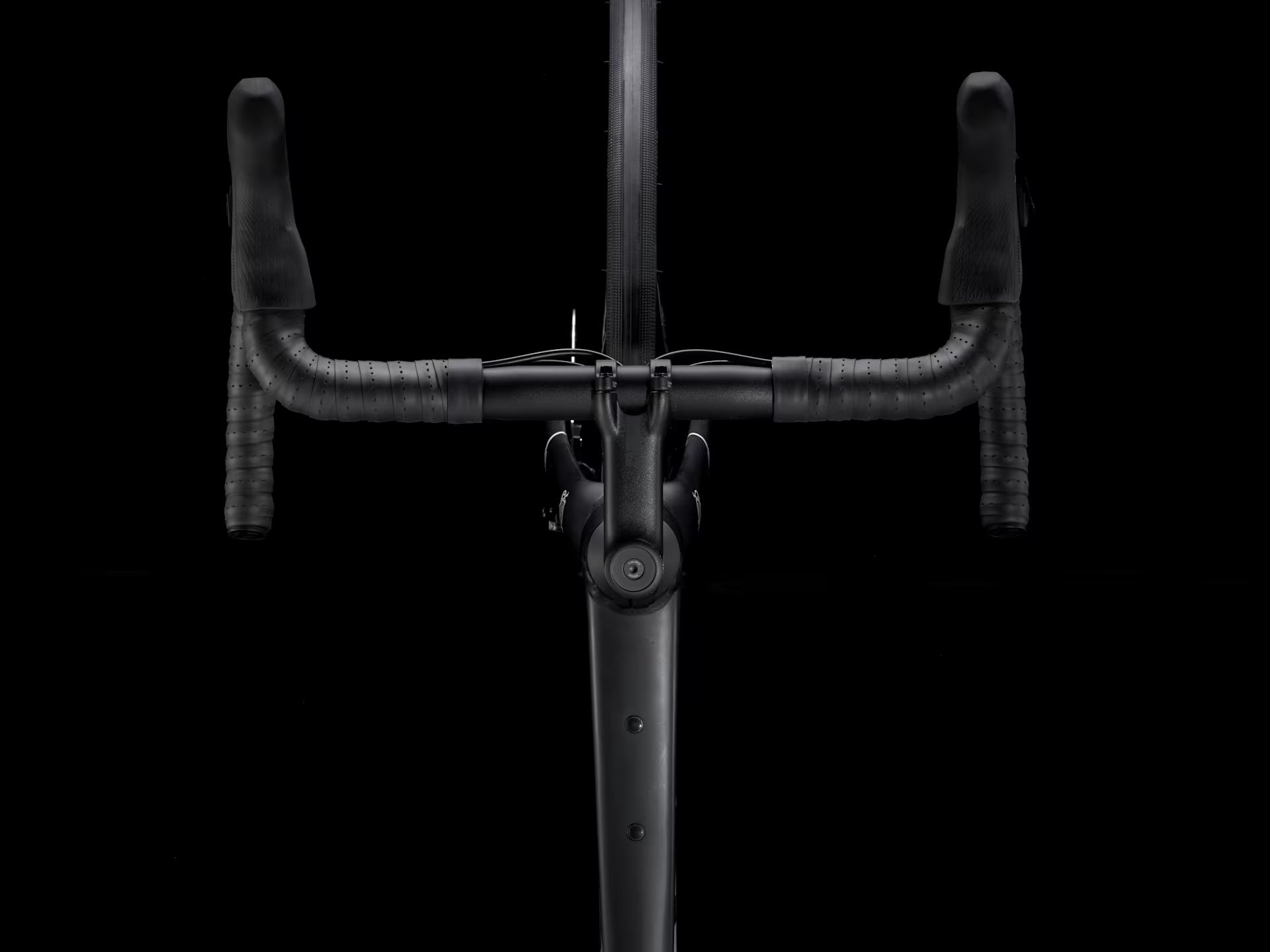

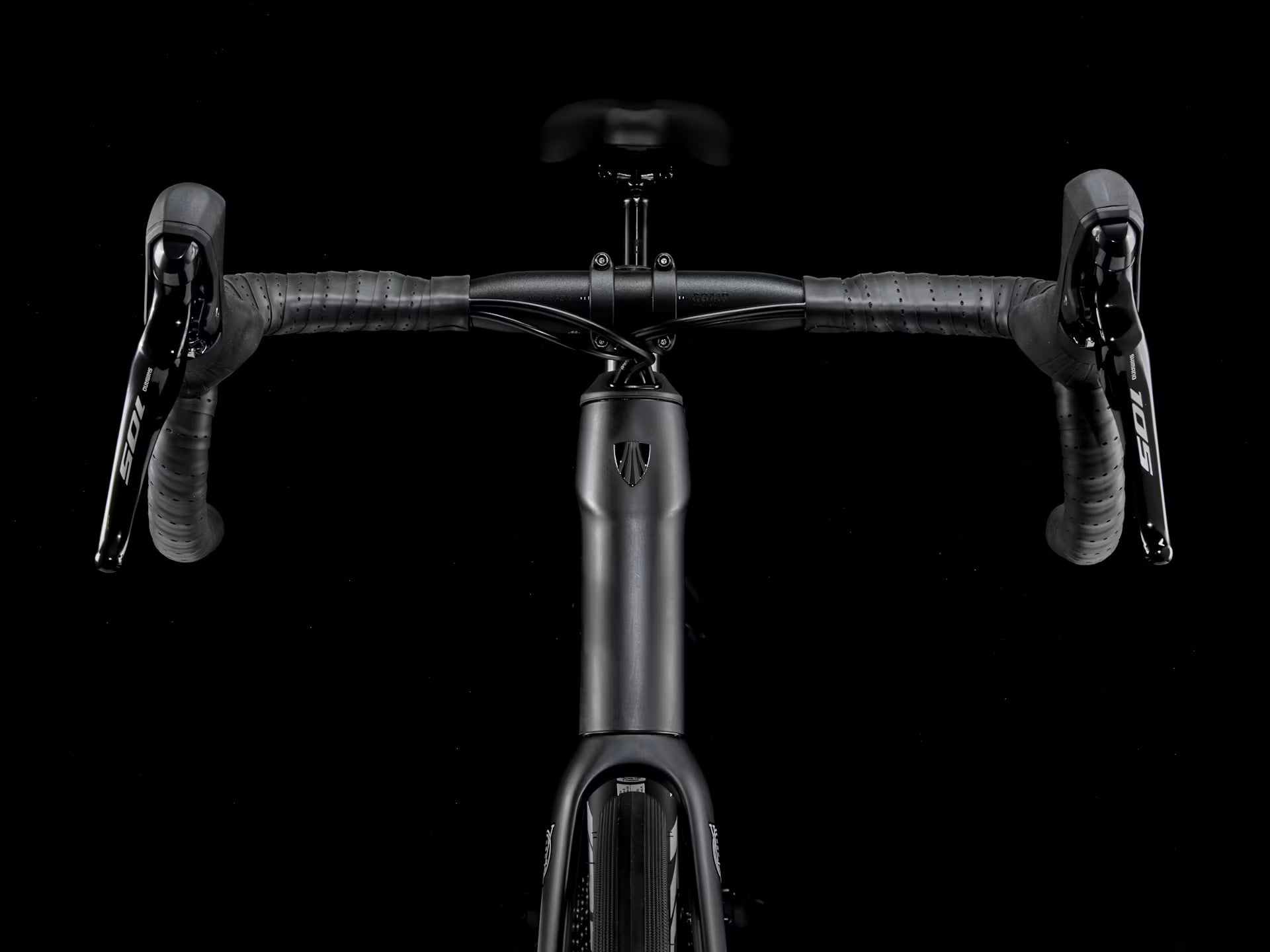

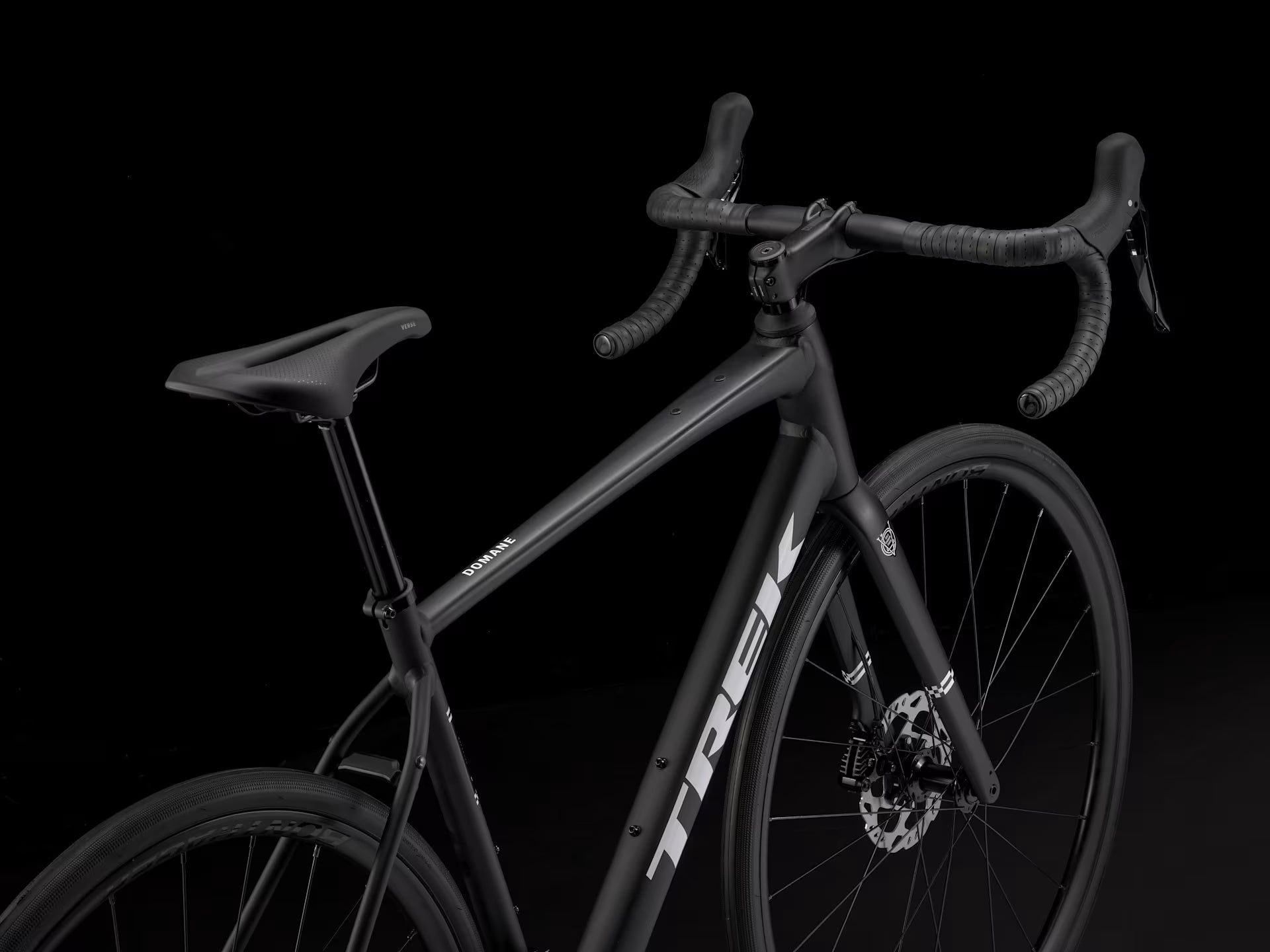

A modern handlebar with 4 cm of flare between the drops and hoods put you in a more comfortable position, and new hidden cable routing offers premium integration typically found on more expensive models.
High-value performance
The Domane AL Disc is built in Trek's road racing heritage, which means it's a road bike you won't outgrow as your rides get longer and faster.
Specifications
- Intended Use- Road
- Wheel Size- 700c
- Braking System- Hydraulic Disc
- Frame Material- Aluminium
-
Fork Material- Carbon
Frameset
| Frame | 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle |
| Fork | Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100 mm thru axle |
Weight
| Weight | 56 - 9.85 kg / 21.72 lb |
| Weight limit | Maximum total weight limit (bike + rider + cargo): 125 kg (275 lb) |

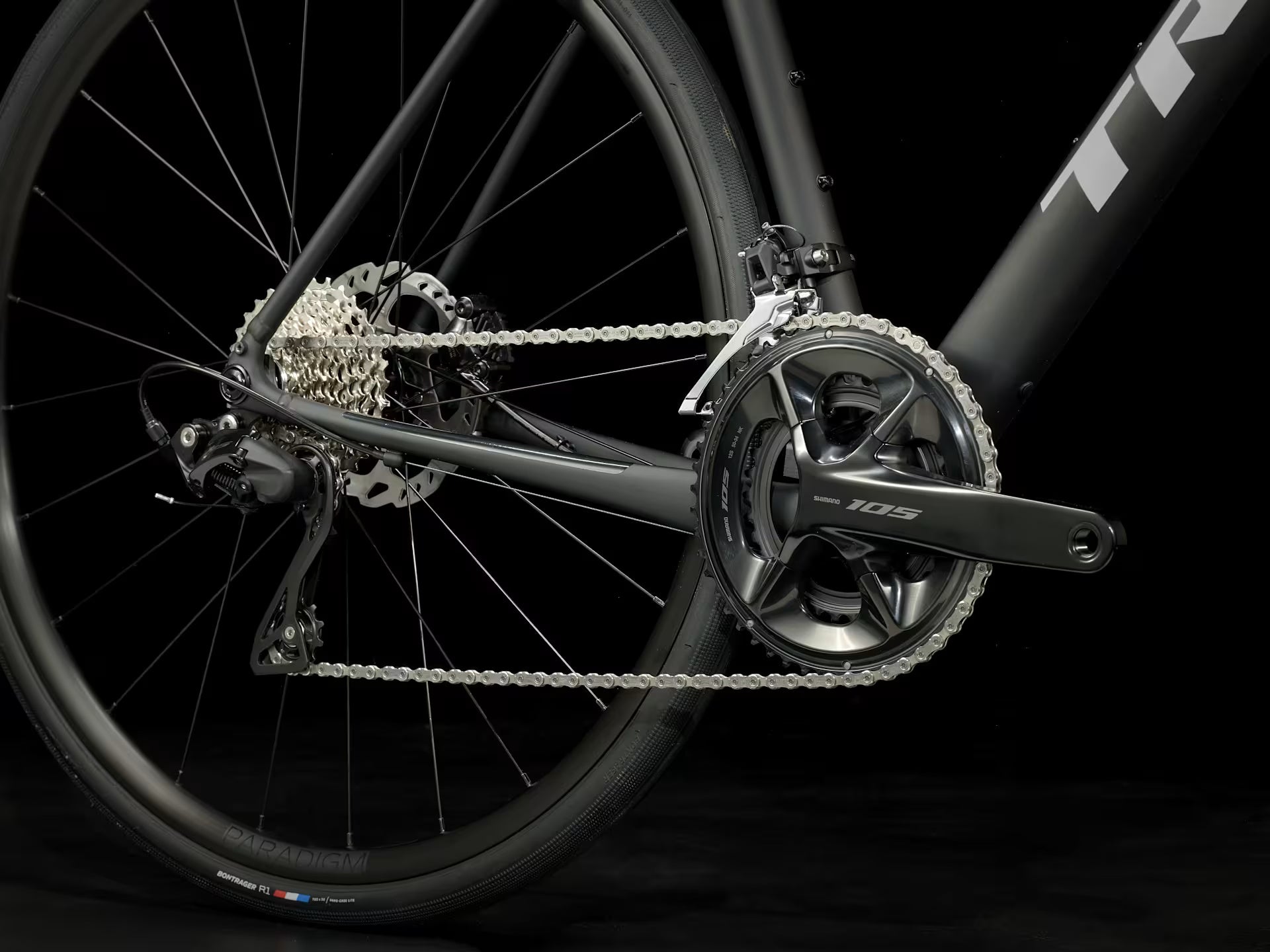

Drivetrain
| Shifter | Shimano 105 R7120, 12-speed |
| Front derailleur | Shimano 105 R7100, 31.8 mm clamp, down swing |
| Rear derailleur | Shimano 105 R7100, 36T max cog |
| Crank | Size 44: Shimano 105 R7100, 50/34, 165 mm Size 49, 52: Shimano 105 R7100, 50/34, 170 mm Size 54, 56: Shimano 105 R7100, 50/34, 172.5 mm Size 58, 61: Shimano 105 R7100, 50/34, 175 mm |
| Bottom bracket | Size 44–61: Shimano RS501 BSA Size 44–58: Prowheel PW-BB73+, 68/73 mm, threaded external |
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max. chainring size | 1x: 50T, 2x: 50/34 |
Wheels
| Front hub | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
| Rear hub | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Skewers | Bontrager Switch chamfered thru axle, removable lever (front & rear) |
| Rims | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyres | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm |
Components
| Saddle | Verse Short, steel rails, 145 mm width |
| Seatpost | Size 44, 49: Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length Size 52–61: Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length |
| Handlebar | Size 44, 49: Bontrager Elite IsoZone VR-SF, 31.8 mm, 75 mm reach, 128 mm drop, 38 cm width Size 52: Bontrager Elite IsoZone VR-SF, 40 cm width Size 54, 56: Bontrager Elite IsoZone VR-CF, 93 mm reach, 123 mm drop, 42 cm width Size 58, 61: Bontrager Elite IsoZone VR-CF, 44 cm width |
| Handlebar tape | Bontrager Supertack Perf tape |
| Stem | Size 44: 70 mm Size 49: 80 mm Size 52, 54: 90 mm Size 56, 58: 100 mm Size 61: 110 mm All: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree |

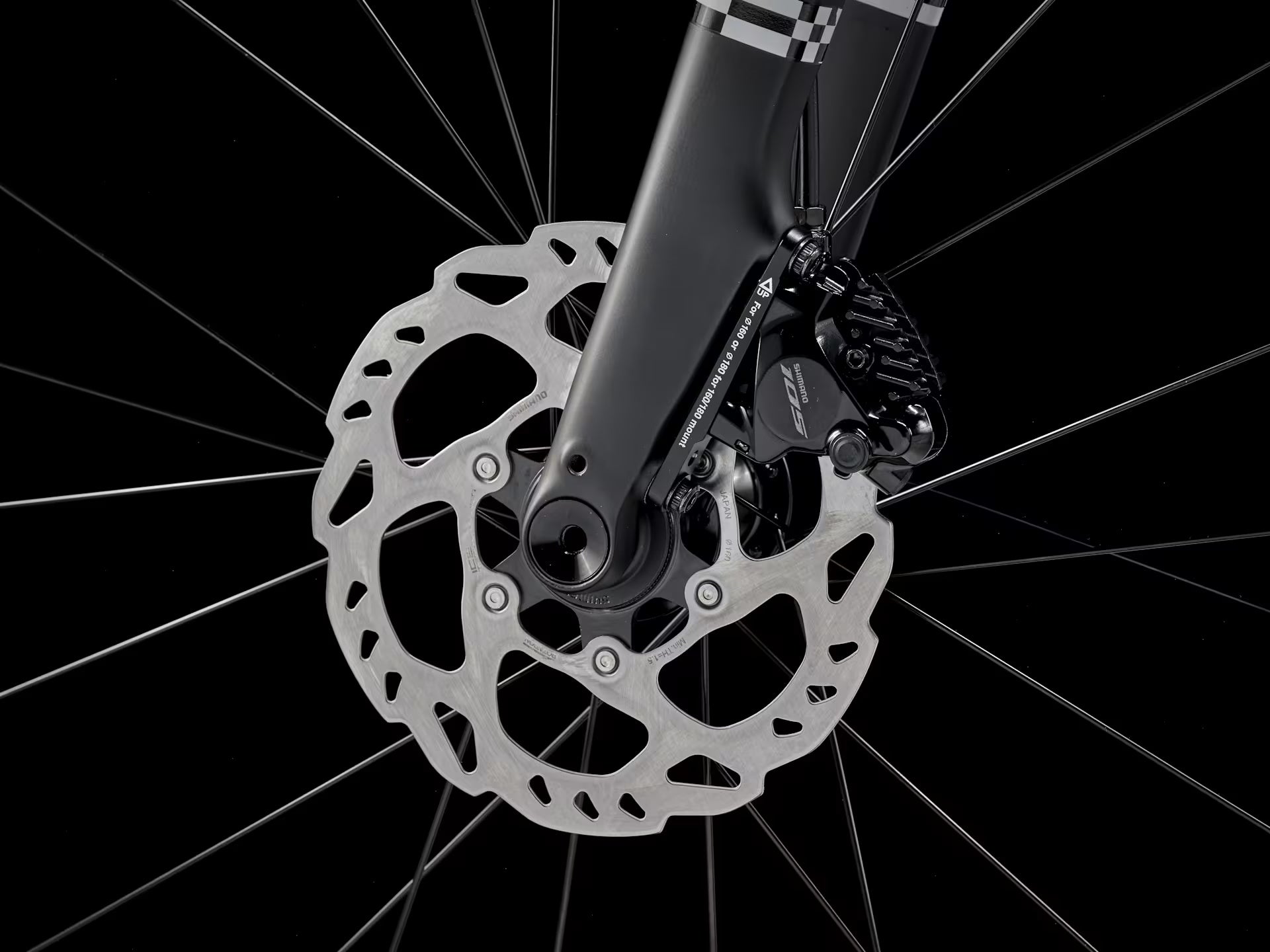

| Brake | Shimano 105 hydraulic disc, flat mount |
| Brake rotor | Shimano RT70, CentreLock, 160 mm (front and rear) |
