Trek

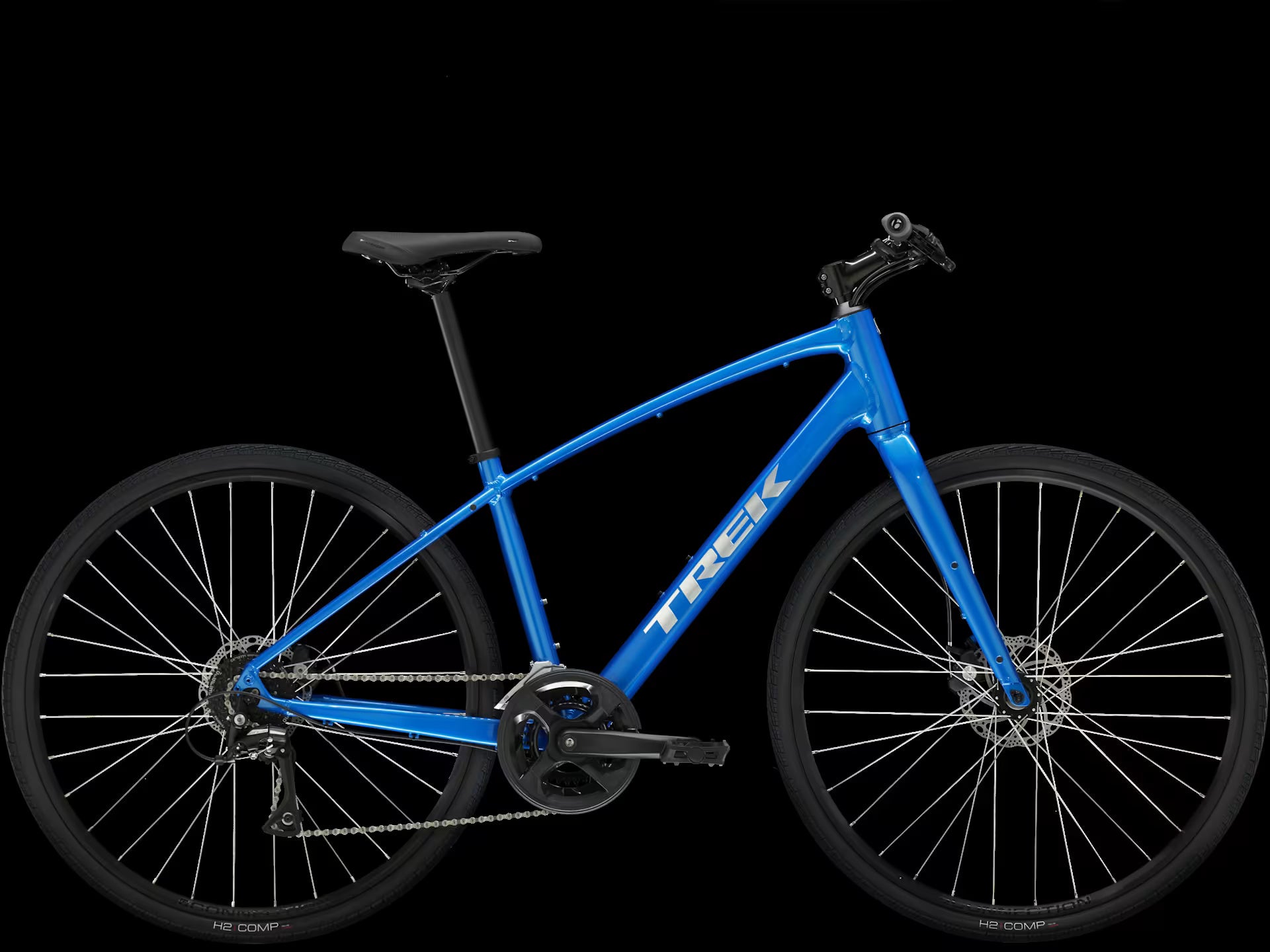

TREK FX 1 Gen 4 (Alpine Blue)
To purchase this, please get in touch through one of the following methods
The FX 1 is a lightweight aluminium hybrid bike that looks great and feels just as good to ride. It has lots of gears so you can cruise any terrain comfortably, and powerful disc brakes that give you confident stopping power, rain or shine. It's perfect for anyone looking to get out more, do a bit of exercise or commute to work on a versatile bike backed by a lifetime warranty.
Features

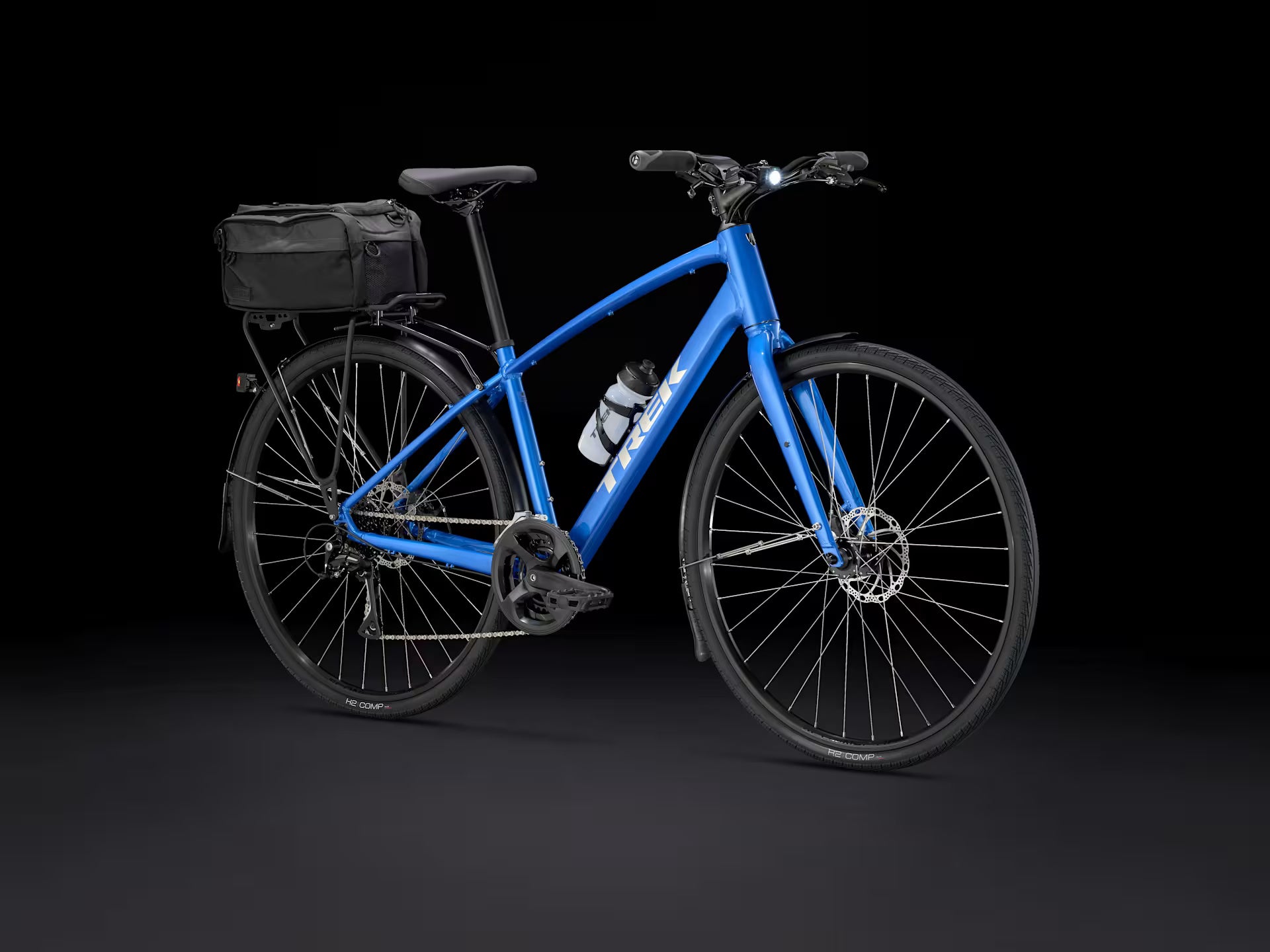

A lightweight aluminium frame with internal cable routing for clean looks and protection from the elements, 16 speeds with a wide range of gearing so you can always find the right gear for your terrain and disc brakes for stopping power in all weather conditions. Plus, strong double-walled tyres, strong wheels and frame mounts that make it easy to accessorise your ride with racks, a kickstand, mudguards, lights and more!
Specifications
- Intended Use- All Types
- Wheel Size- 700c
- Braking System- Rim
- Frame Material- Aluminium
- Fork Material- Aluminium
Components
Framset
| Frame | Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR |
|---|---|
| Fork | FX steel, flat-mount disc, rack mounts, 410 mm axle-to-crown, ThruSkew 5 mm QR |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Skewer front | 139x5 mm bolt-on |
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 152x5 mm QR |

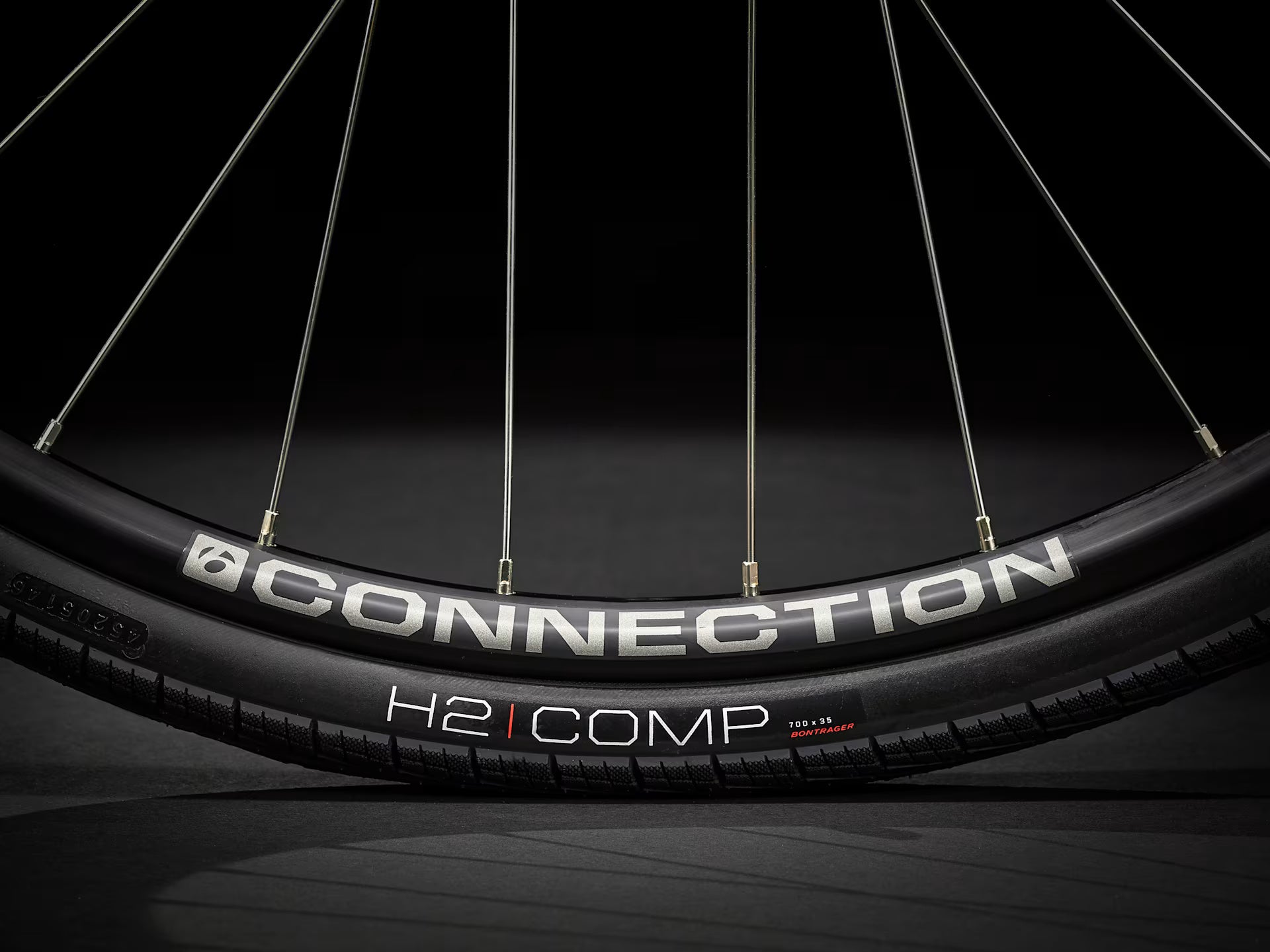

| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Tyre | Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm |
| Max tyre size | 700x40 mm |

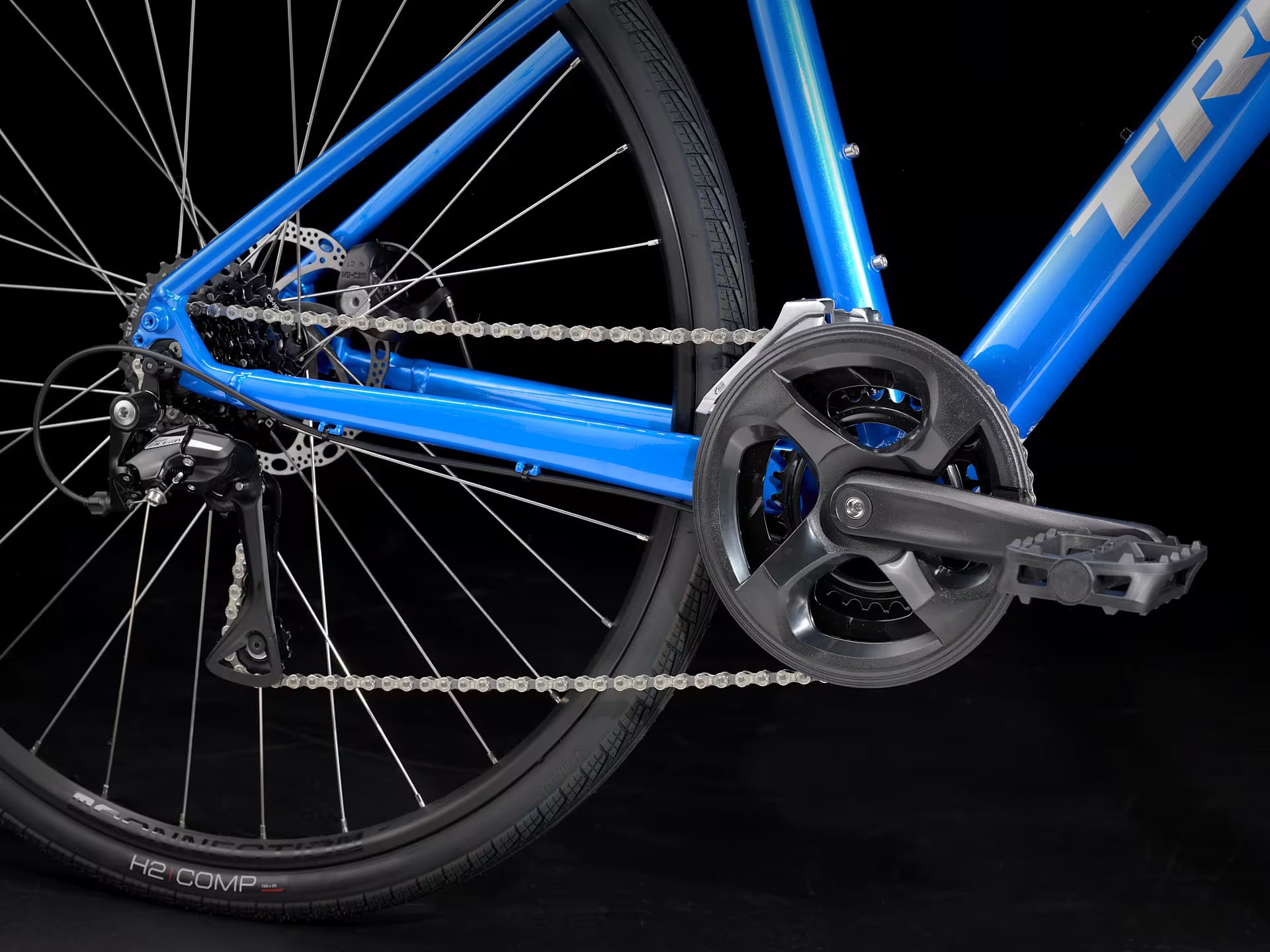

Drivetrain
| *Shifter |
Size: S, M, L, XL Shimano EF500, 2-speed |
|---|---|
|
Size: S, M, L, XL Shimano EF500, 8-speed |
|
| Front derailleur | Shimano Tourney TY606, 31.8/34.9 mm clamp, top swing, dual pull |
| Rear derailleur | Shimano Acera M3020-8, 40T max cog |
| Crank | Forged alloy, 46/30, chainguard, 170 mm length |
| Bottom bracket | Sealed cartridge, 68 mm |
| Cassette | Shimano 8-speed, 12-32T |
| Chain | KMC Z8.3 |
| Pedal | Wellgo nylon platform |
| Max. chainring size | 1x: 44T, 2x: 46/32 |
Components

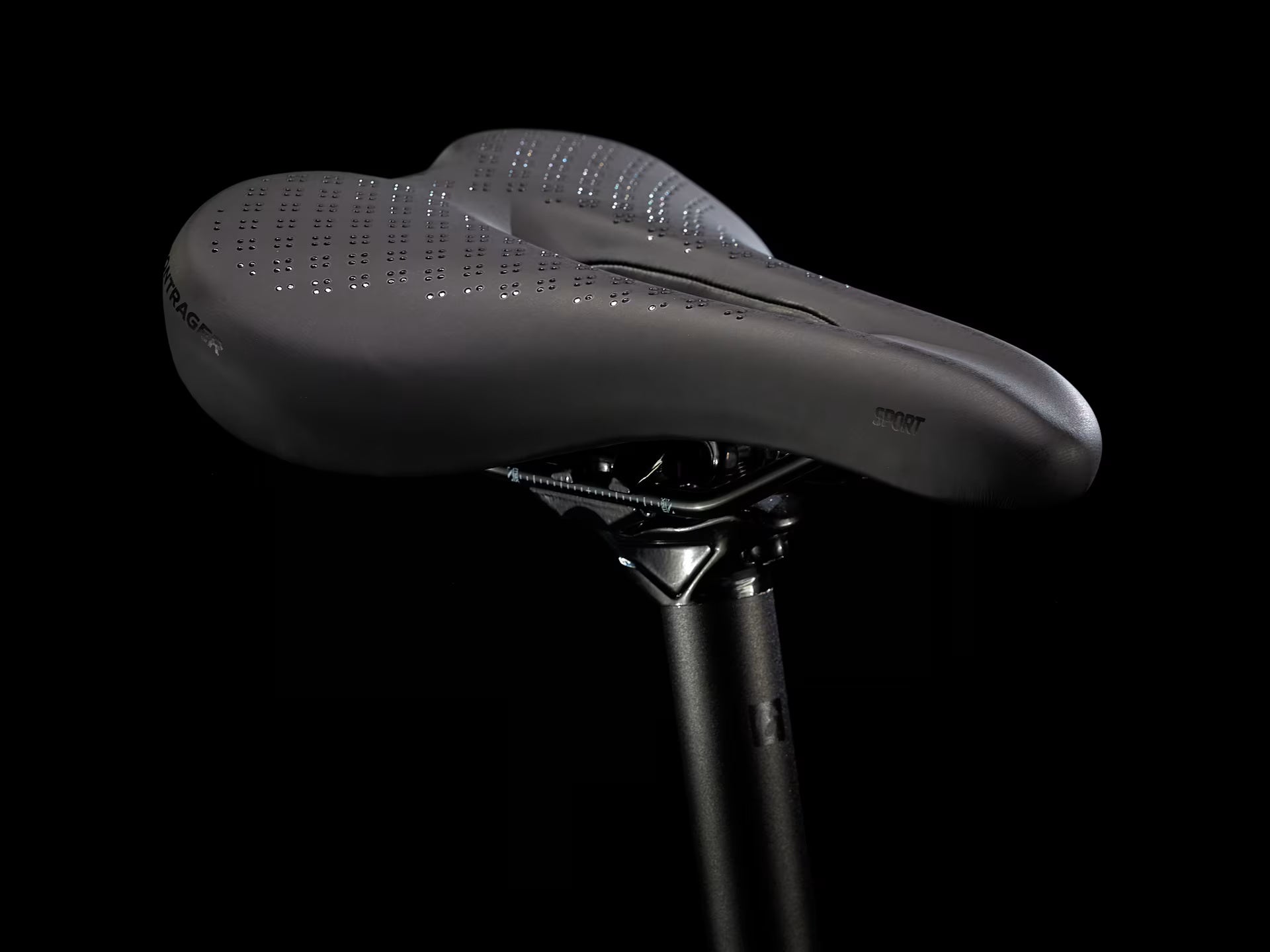

| Saddle | Bontrager Sport |
|---|---|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |

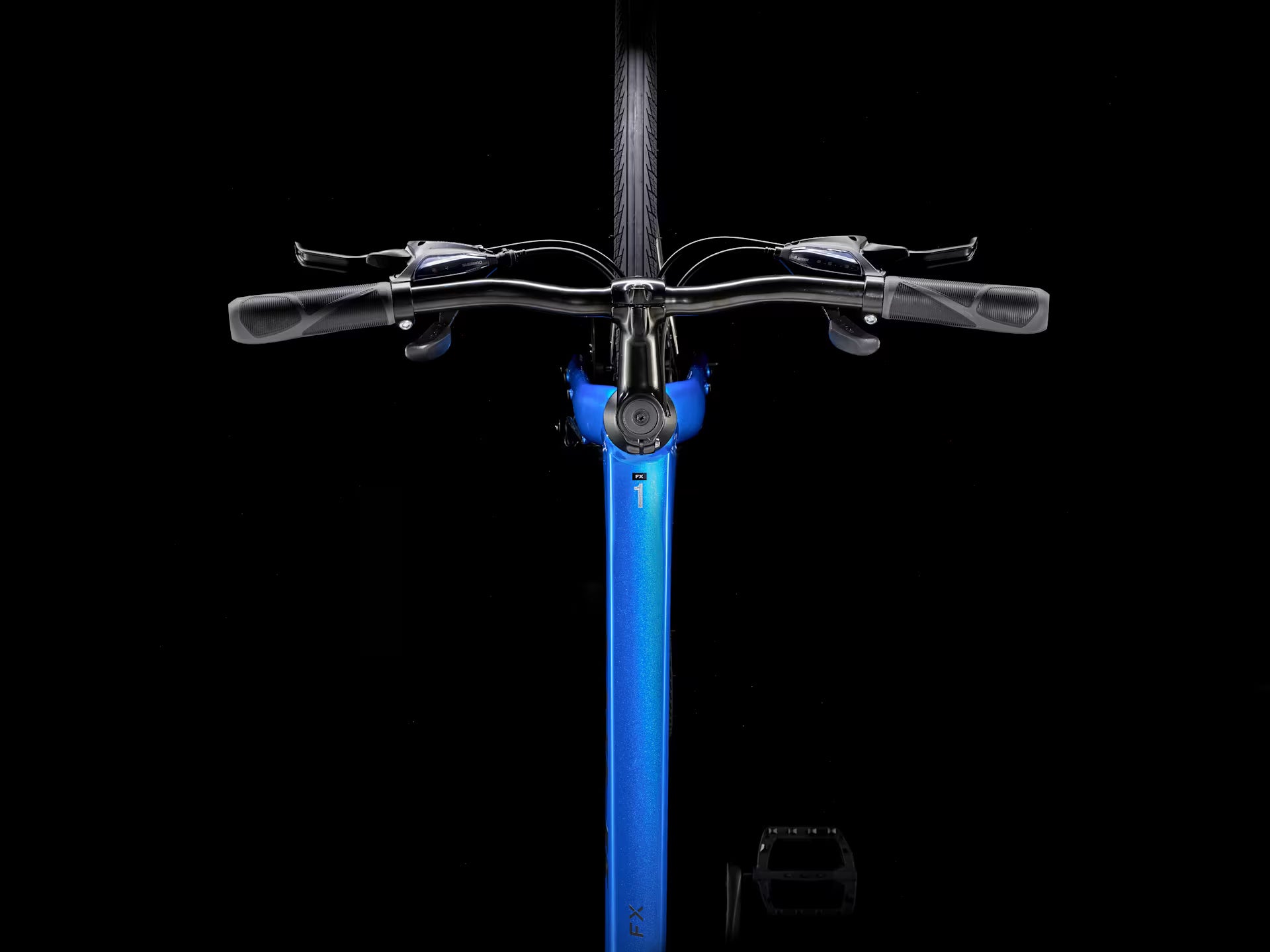

| *Handlebar |
Size: S, M, L Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width |
|
Size: XL Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620mm width |
|

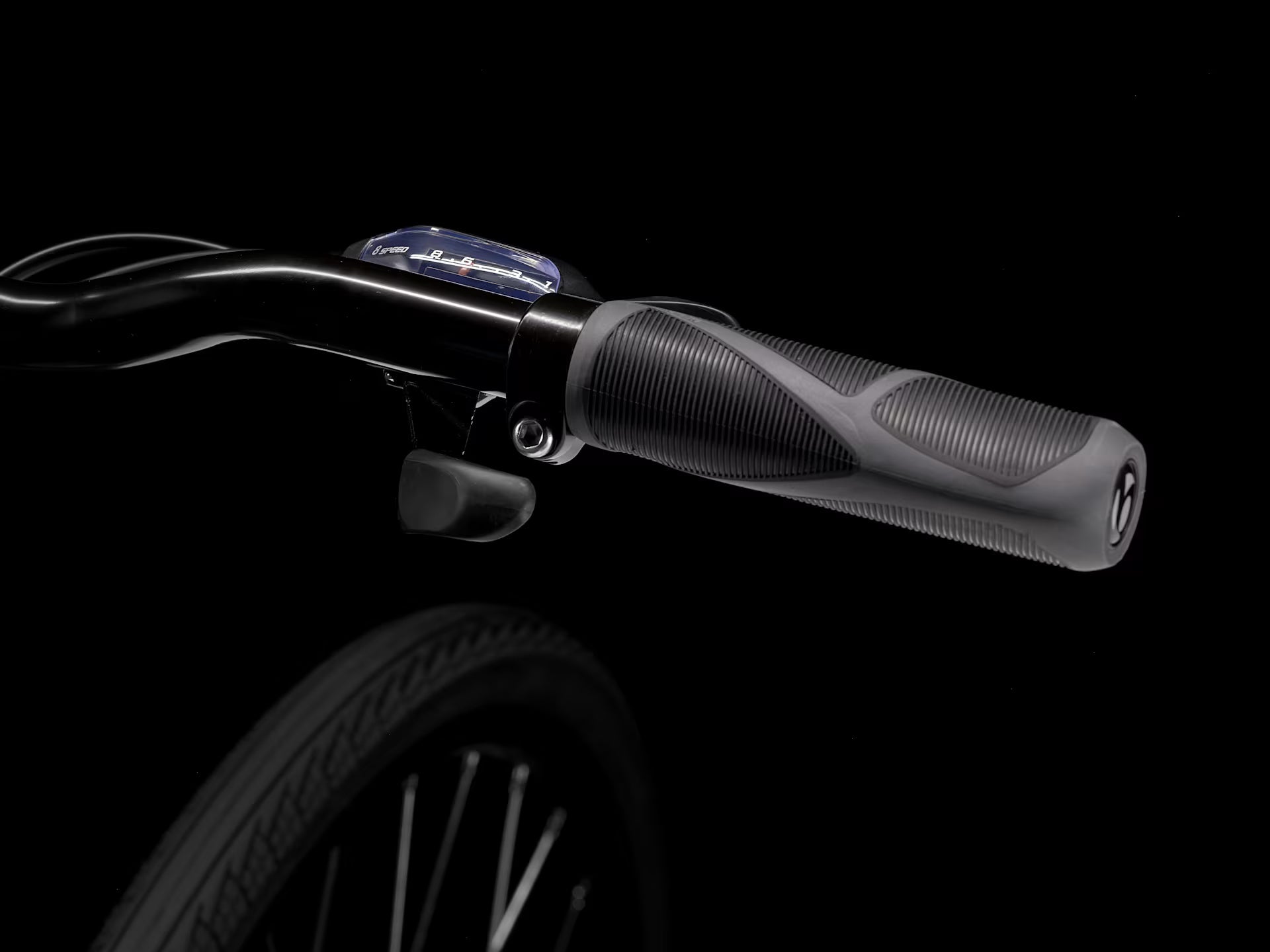

| Grips | Bontrager Satellite |
| *Stem |
Size: S, M Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length |
|
Size: L, XL Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length |
|
| Brake | Tektro MD-U310 mechanical disc |
| Brake rotor | Tektro wave, 6-bolt, 160 mm |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
Weight
| Weight | M – 13.00 kg/28.67 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Geometry
Sizing
