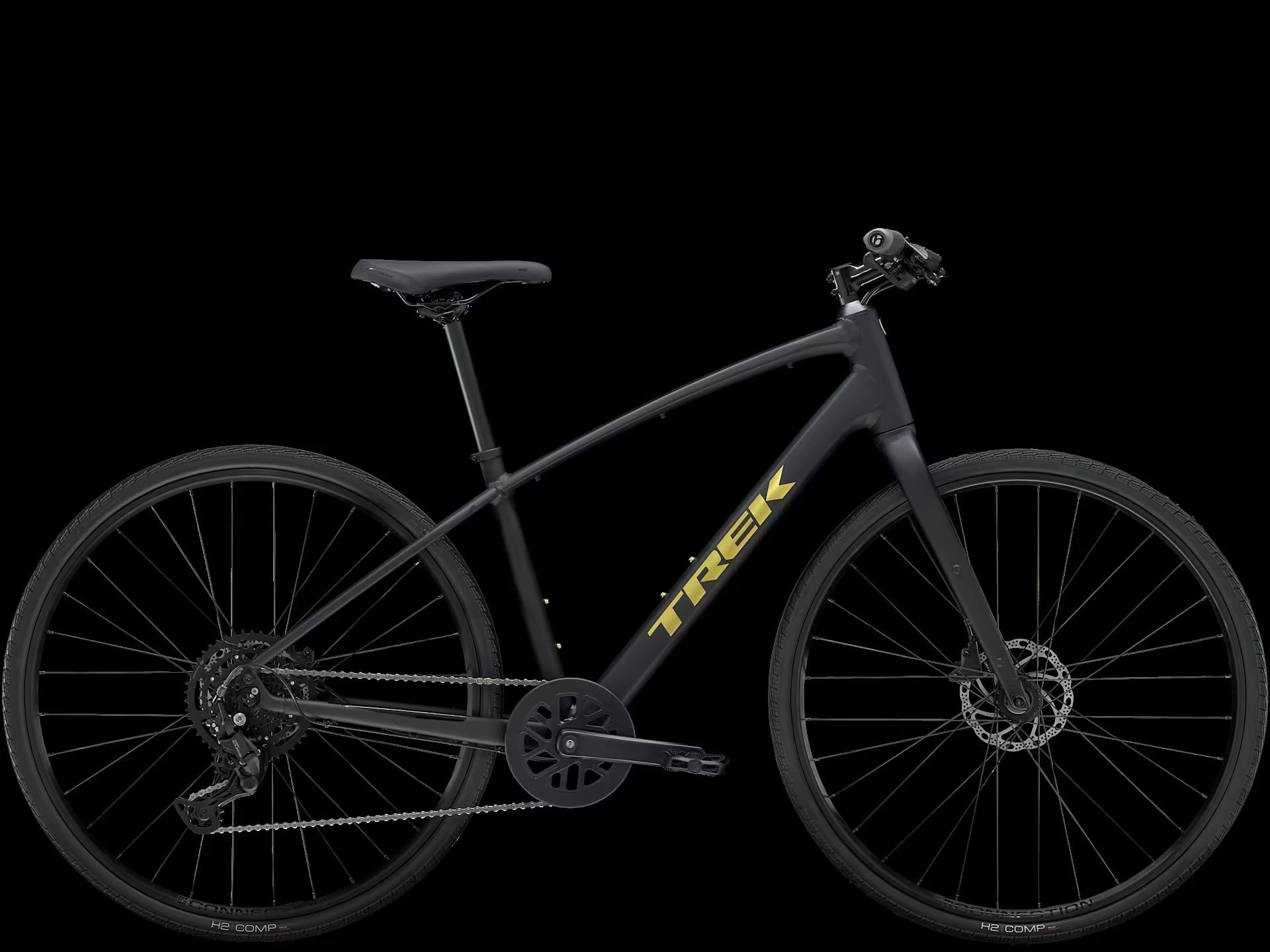

TREK FX 2 Gen 4 (Matte Black)
To purchase this, please get in touch through one of the following methods
The FX 2 is a stylish and versatile hybrid bike with disc brakes that let you stop on a penny – even when the weather isn't cooperating. Exercise, commute or ride for fun with the lightweight aluminum frame, long-lasting tyres that are fast on the road and stable on loose terrain.
Features
Shimano CUES
Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes. CUES features Shimano’s new LINKGLIDE drivetrain technology for significantly increased life on wear items like chain, cassette and chainrings.
Shimano LINKGLIDE
LINKGLIDE technology has been specifically engineered for incredible durability while still delivering smooth and decisive shifting – along with a great pedalling experience. Available exclusively on Shimano CUES drivetrains.
HYDRAULIC Disc Brakes
Hydraulic Disc Brakes offer the absolute stopping power even in wet and muddy conditions.

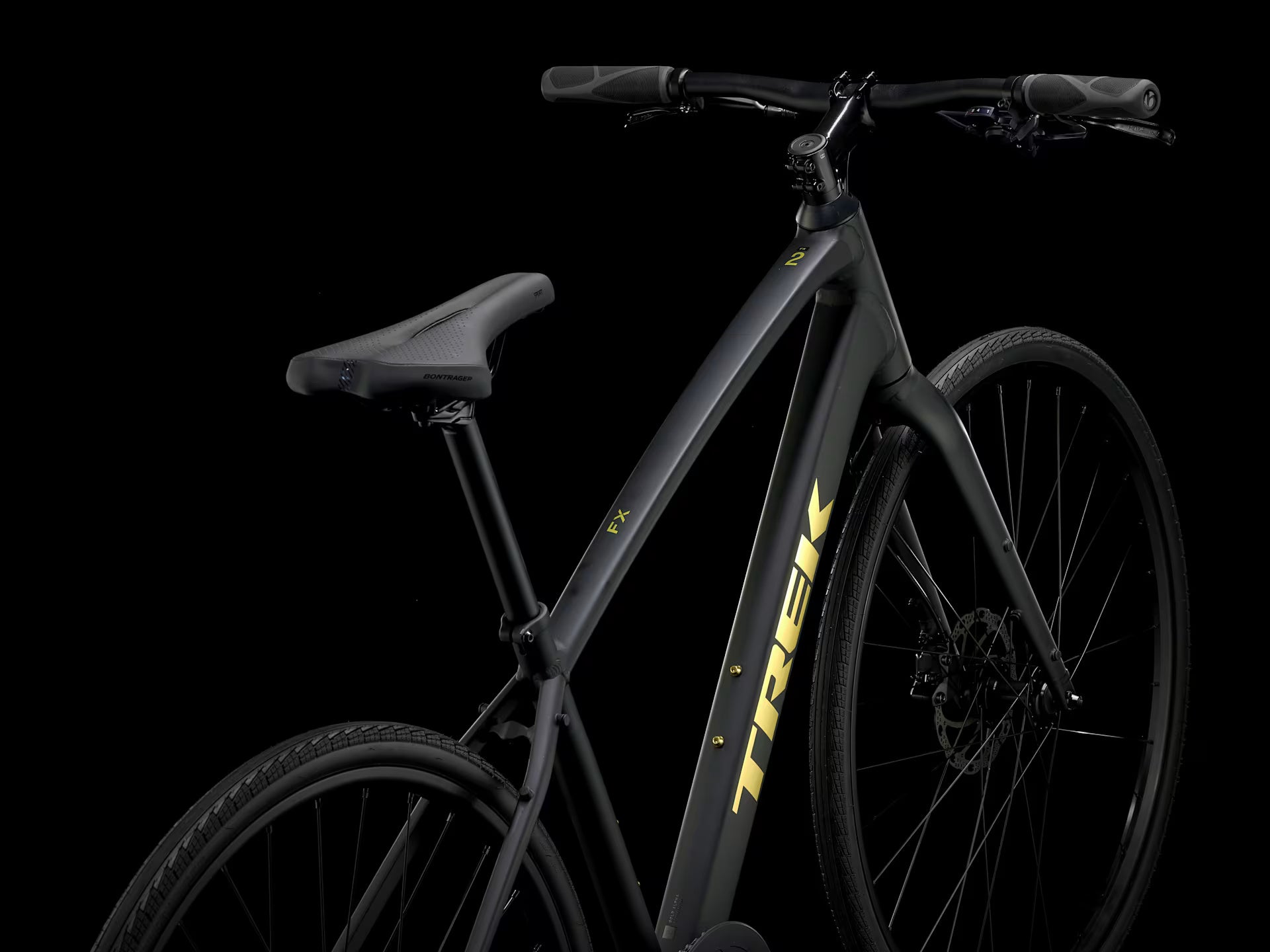

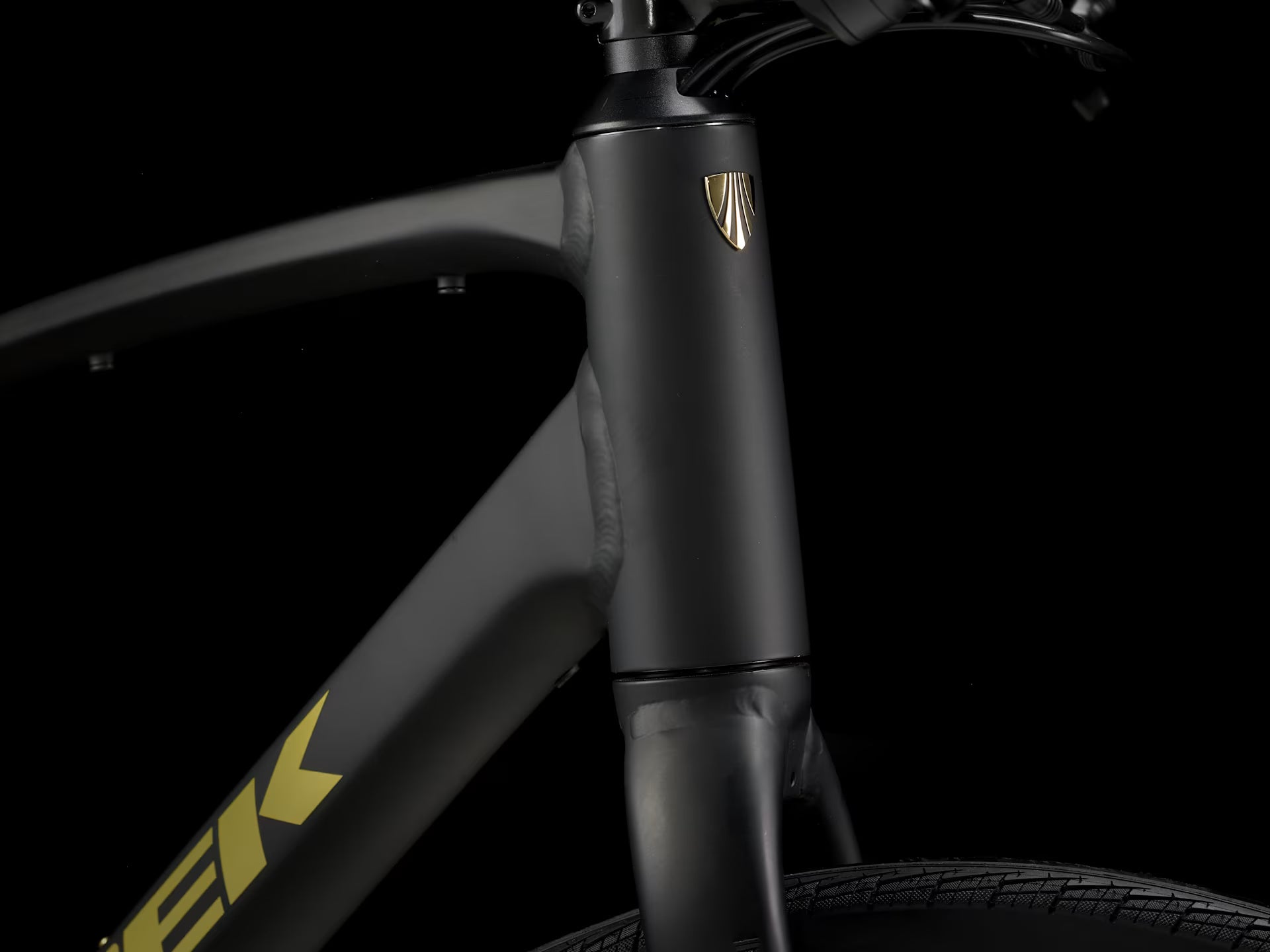

ALPHA GOLD Aluminum Frame
The Lightweight Aluminum Frame is continuously cold extruded and butted and formed into manipulated tubes shapes to balance strength and save weight.
Specifications
- Intended Use- Commuting
- Wheel Size- 700c
- Braking System- Hydraulic Disc
- Frame Material- Aluminum
-
Fork Material- Aluminum
Framset
| Frame | Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR |
|---|---|
| Fork | FX alloy, flat-mount disc, rack mounts, 410 mm axle-to-crown, ThruSkew 5 mm QR |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Skewer front | 139x5 mm bolt-on |
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 152x5 mm QR |

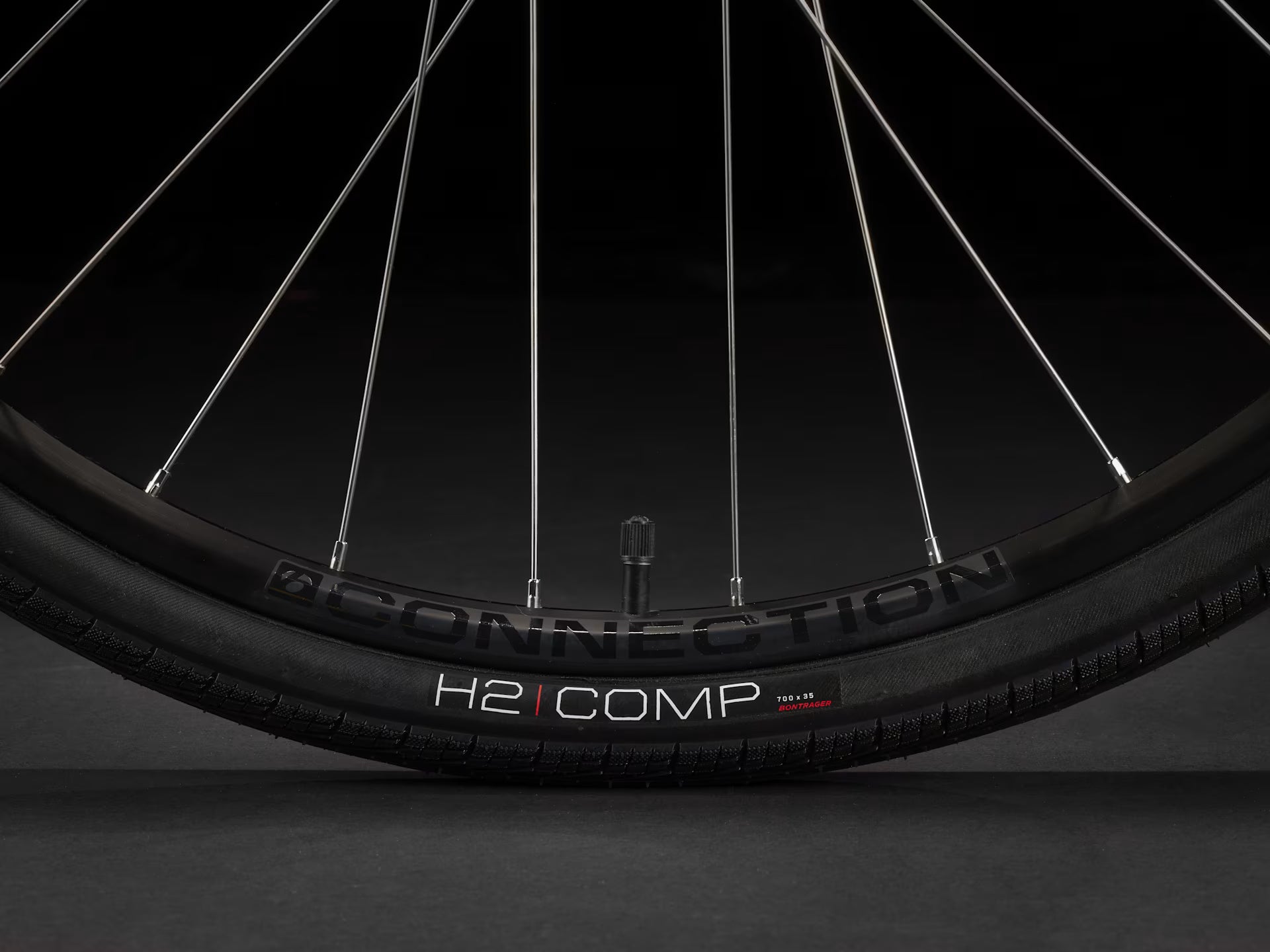

| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Tyre | Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm |
| Max tyre size | 700x40 mm |

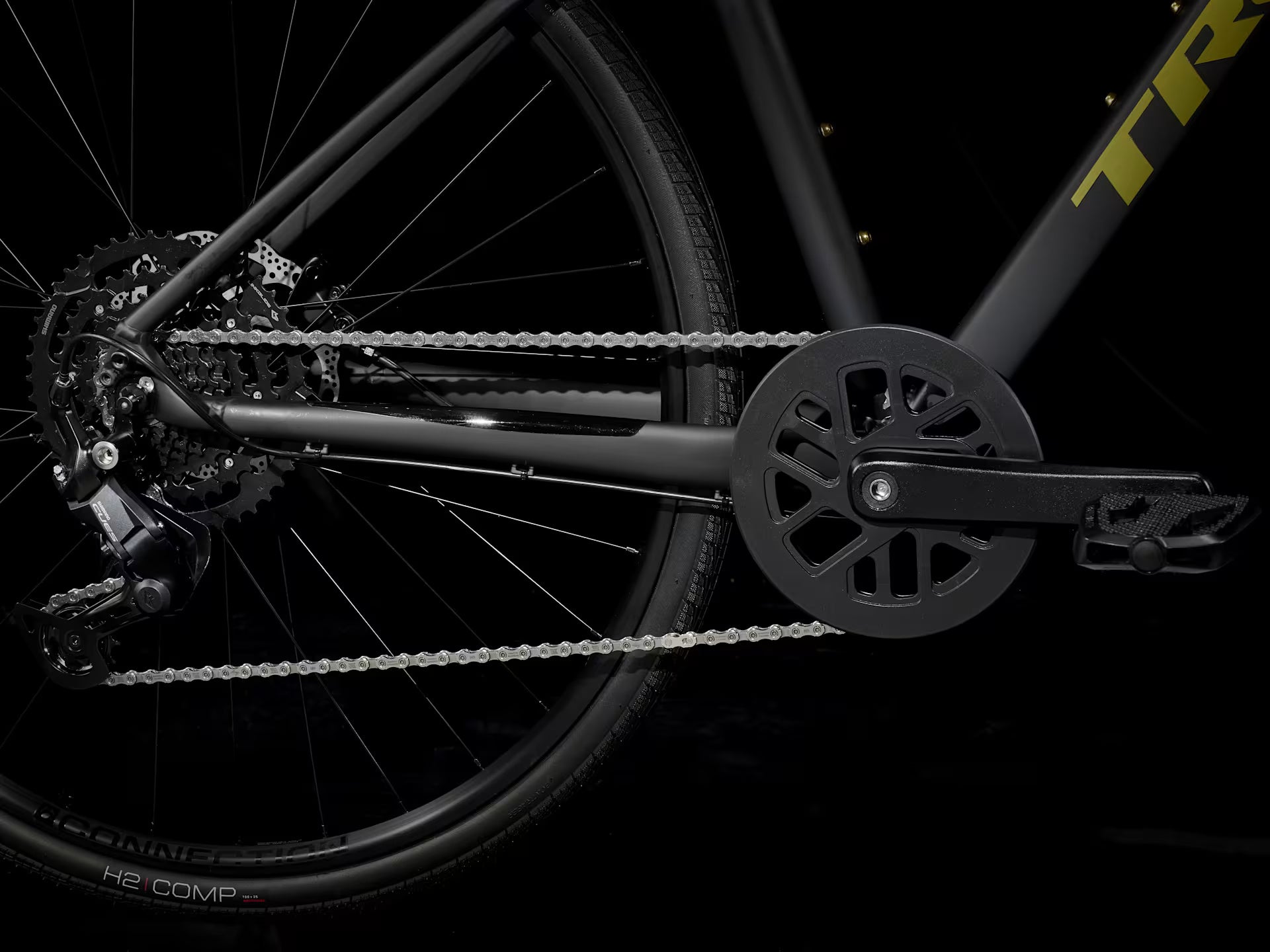

Drivetrain

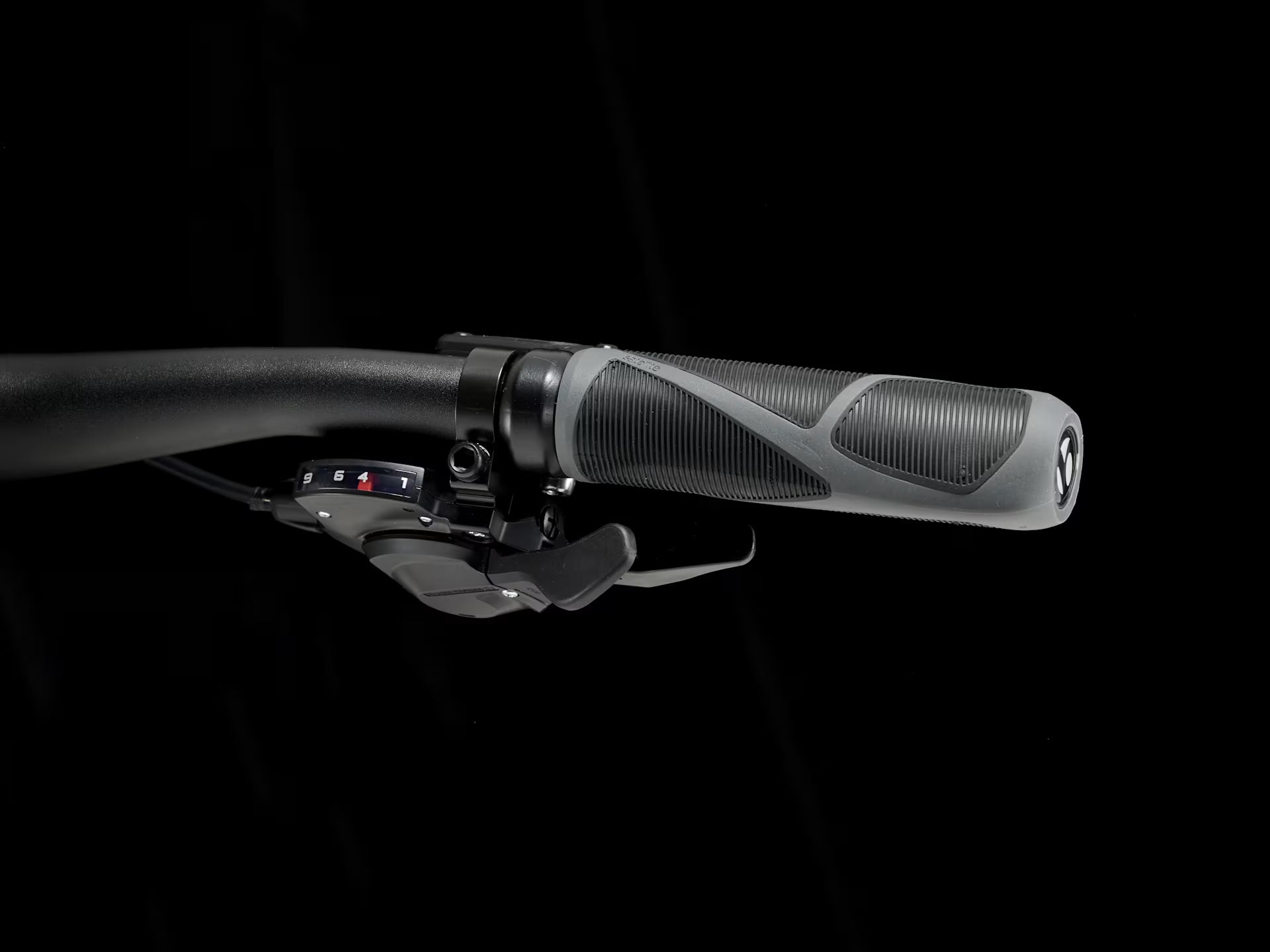

| Shifter | Shimano U4000, 9-speed |
|---|---|
| Rear derailleur | Shimano CUES U4000 |
| Crank | ProWheel Pro alloy, 40T narrow-wide steel ring, 170 mm length |
| Bottom bracket | Sealed cartridge, 68 mm |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Chain | Shimano LG500 |
| Pedal | Bontrager City pedals |
| Max. chainring size | 1x: 44T, 2x: 46/32 |
Components

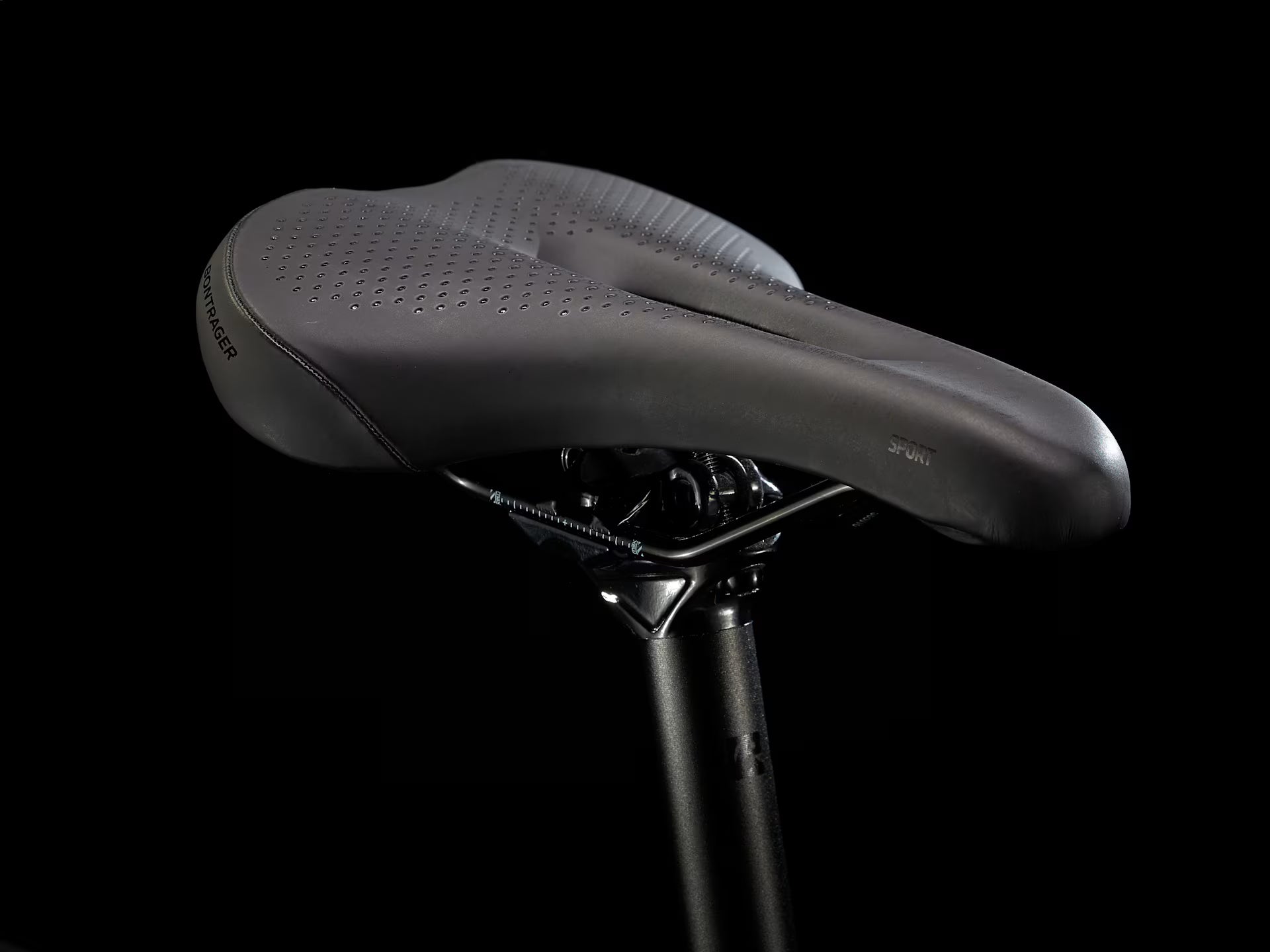

| Saddle | Bontrager Sport |
|---|---|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |

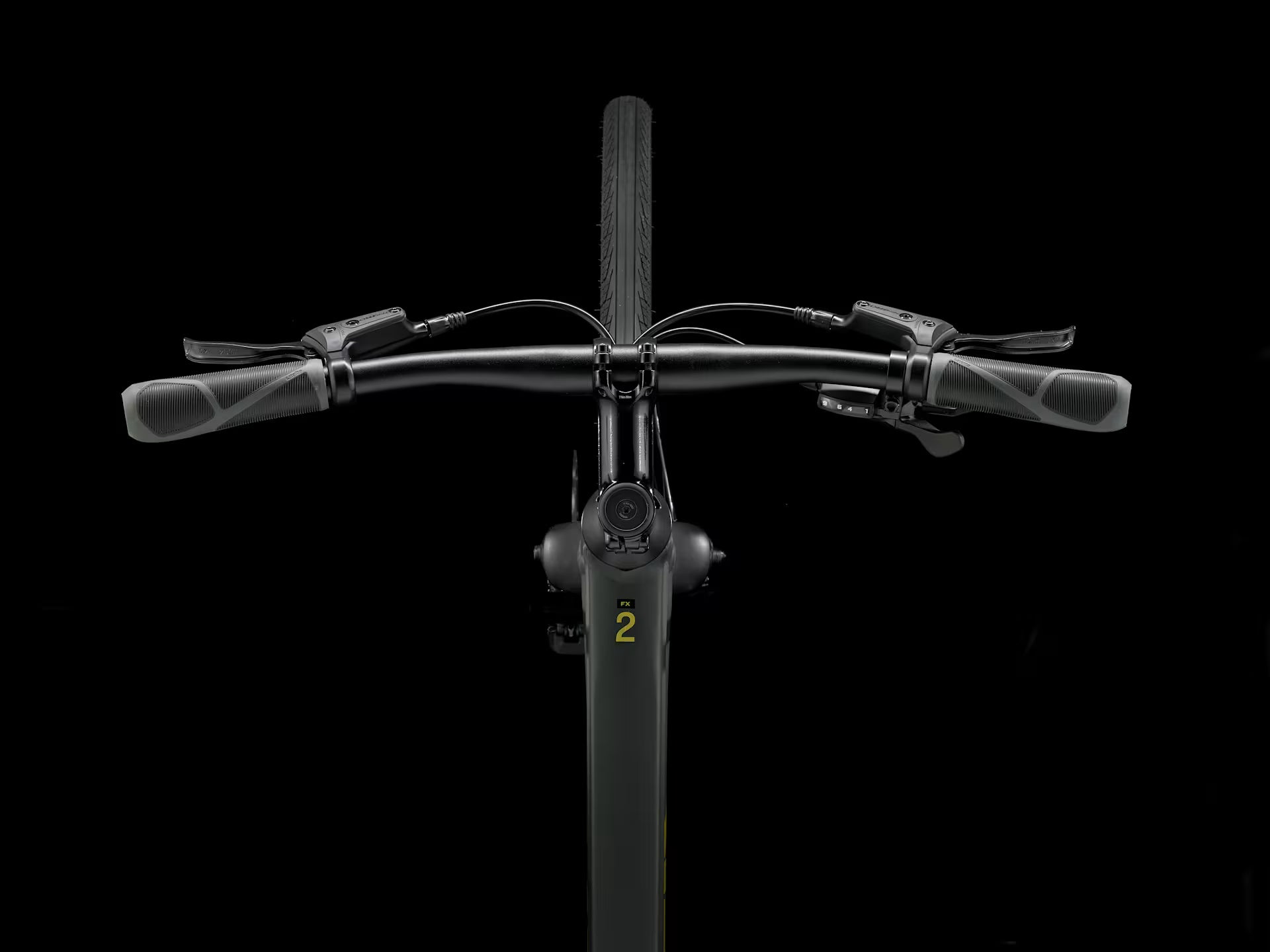

| *Handlebar |
Size: S, M Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width |
|
Size: L, XL Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width |
|
| Grips | Bontrager Satellite |
| *Stem |
Size: S, M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length |
|
Size: L, XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length |
|

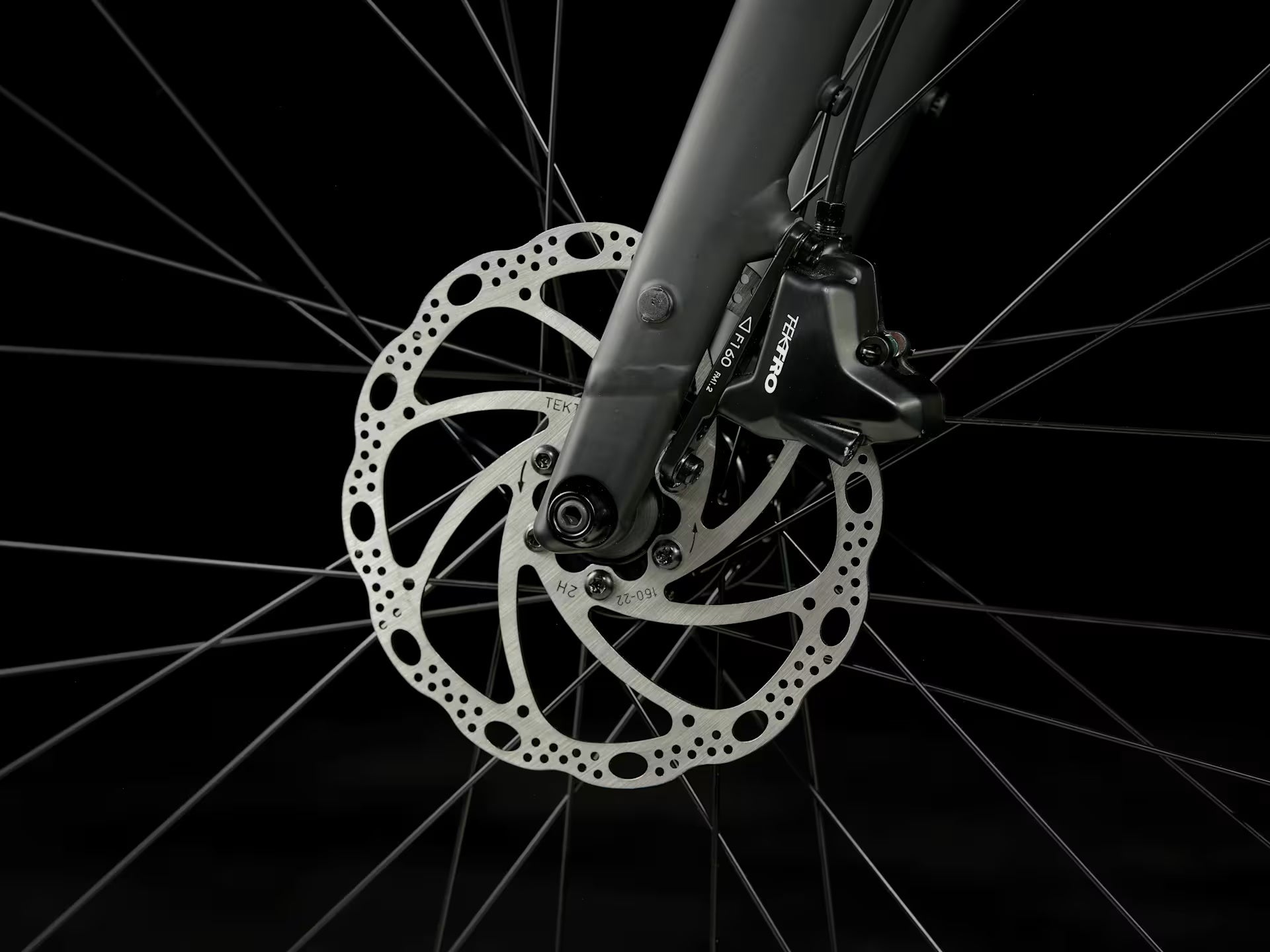

| Brake rotor | Tektro wave, 6-bolt, 160 mm |
| Brake Set | Tektro HD-R280 hydraulic disc, 160 mm rotor |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
Weight
| Weight | M – 11.81 kg/26.04 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
